MAXIM INTEGRATED / ANALOG DEVICES MAX28200WEVKIT Evaluation Kit

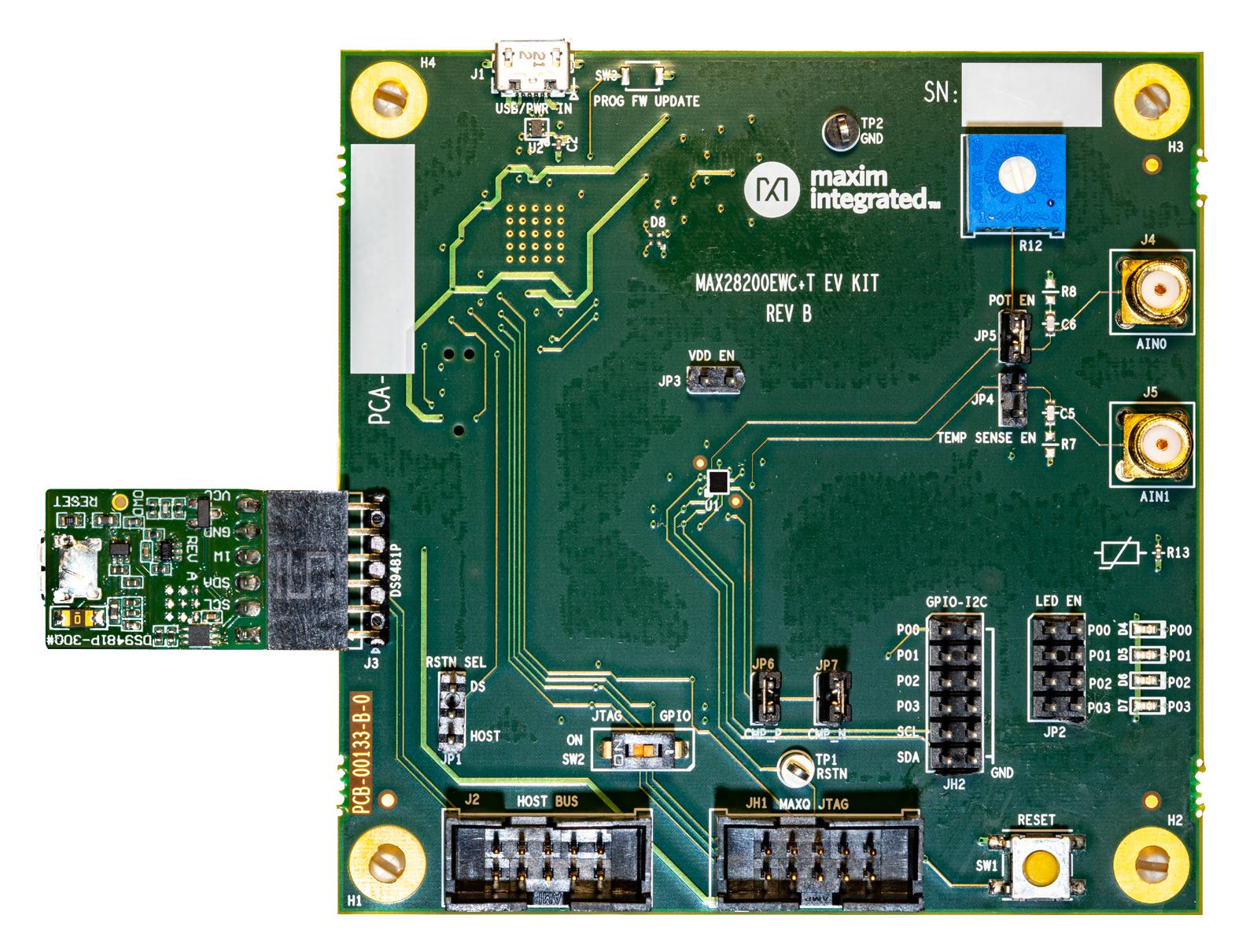

The MAX28200 evaluation kit simplifies development with its compact design and preprogrammed demo firmware. It features the MAX28200 MCU with a MAXQ20 16-bit core, 16KB flash, 2KB SRAM, and integrated peripherals including LEDs, temperature sensor, and potentiometer. Designed for easy access to GPIOs and flash programming via JTAG or I2C, the kit includes the MAX28200 evaluation board, DS9481P programming tool, and a USB cable. Ideal for testing analog inputs, port activity, and integrating into various projects with user-configurable LEDs and analog inputs.
MAXIM INTEGRATED / ANALOG DEVICES MAX28200WEVKIT Evaluation Kit Specifications:
- Microcontroller: MAX28200 with MAXQ20 16-bit core
- Flash Memory: 16KB
- SRAM: 2KB
- Peripherals: Status LEDs, temperature sensor, potentiometer
- Programming Interface: JTAG and I2C via ROM bootloader
- Power Supply: USB, host bus adapter, or DS9481P programming tool
- Analog Inputs: SMA connectors for ADC, thermistor, potentiometer
- GPIO Access: 100-mil pitch headers with configurable routing via switch SW2
- Power Supply Voltage: 5V via USB or external source
- Demonstration Firmware: Pre-installed and testable
- Included: Evaluation board, programming tool, USB cable
Buy the Maxim Series MAX28200 Evaluation Kit: MAX28200WEVKIT
Experience the powerful MAX28200 evaluation kit, designed for quick and easy development with preloaded demo firmware, accessible GPIOs, integrated peripherals, and versatile programming options. This compact kit includes the MAX28200 evaluation board, DS9481P programming tool, and a USB cable, allowing seamless testing of analog inputs, port activity, and system monitoring. Ideal for engineers and developers seeking a reliable platform for prototyping and performance validation in embedded applications and IoT projects.
Get Maxim MAX28200 evaluation kit today—engineered for precise testing and reliable performance in your development projects.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX28200WEVKIT?
You can click on the BUY or RFQ button to purchase MAX28200WEVKIT from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX28200WEVKIT?
You can download the MAX28200WEVKIT datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX28200WEVKIT?
MAXIM INTEGRATED / ANALOG DEVICES
