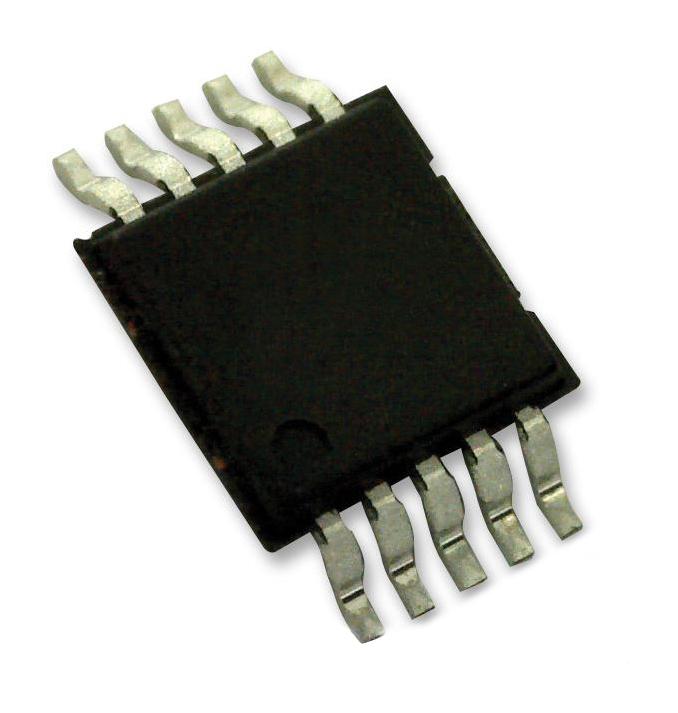

MAXIM INTEGRATED / ANALOG DEVICES MAX11168EUB High-Resolution ADC
The MAX11168 is a 16-bit, high-speed, SAR ADC designed for precision measurements in industrial, medical, and data acquisition systems. It features a true bipolar input range of +5V, internal reference, and low power consumption. The ADC offers 500ksps throughput, excellent SNR of 92.3dB, and integrated buffers for high-impedance sources. Its compact 10-pin uMAX® package and versatile serial interface (SPI/QSPI/MICROWIRE) simplify system integration, making it ideal for multichannel, high-accuracy applications requiring reliable, space-saving solutions.
MAXIM INTEGRATED / ANALOG DEVICES MAX11168EUB High-Resolution ADC Specifications:
- Resolution: 16 Bits
- Sample Rate: 500ksps
- Input Voltage Range: +5V bipolar (10Vp_p)
- Power Consumption: 37.6mW at 500ksps
- Input Impedance: High-impedance, capacitive
- Reference: Internal, 4.096V (typ), 7ppm/°C temperature coefficient
- Interface: SPI/QSPI/MICROWIRE compatible, 10-pin uMAX package
- Operating Temperature: -40°C to +85°C
- Analog Supply Voltage: 4.75V to 5.25V
- Digital Supply Voltage: 2.3V to 5.25V
- Input Clamp Current: Up to ±20mA
- Junction Temperature: -65°C to +150°C
- Junction-to-Ambient Thermal Resistance: 150°C/W
- Input Capacitance: 40pF
- Acquisition Time: 500ns
- Transition Noise: 0.5 LSB
- Total Harmonic Distortion: -101dB
- Spurious-Free Dynamic Range: 103dB
Buy the Maxim Series MAX11168 16-bit ADC: 500ksps Bipolar Input Precision Converter
Enhance your measurement system with the Maxim MAX11168 high-speed 16-bit SAR ADC. Offering 500ksps throughput, bipolar input range, internal reference, and ultra-compact uMAX package, it simplifies integration into medical, industrial, and data acquisition applications. Its low power consumption and versatile serial interface support multi-channel configurations and space-saving designs, ensuring reliable, accurate data conversion in demanding environments. Purchase online today to leverage the best in precision analog-to-digital conversion technology.
Get Maxim MAX11168 today—built for high-speed, high-precision measurements with internal reference in a compact uMAX package.
