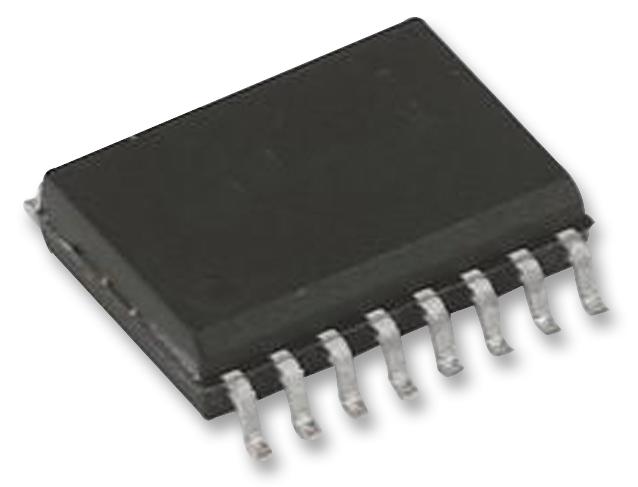

MAXIM INTEGRATED / ANALOG DEVICES MAX328EWE Ultra-Low Leakage Analog Multiplexer

The MAX328EWE is an ultra-low leakage, monolithic CMOS analog multiplexer in a 16-pin WSOIC package. It is a single-ended 8-channel multiplexer designed to minimize leakage currents, making it suitable for high-impedance sources such as op-amps and A/D converters. By adding an external 40 kΩ resistor to each input, the device becomes fault-tolerant, capable of withstanding 110V AC faults indefinitely while maintaining low error levels. The MAX328 operates with a single supply voltage from 10V to 30V or dual supplies from ±5V to ±18V, and performs reliably with unbalanced power supply configurations such as +12V and -5V or +5V and -15V. It features bidirectional operation, making it usable as a multiplexer or demultiplexer, with a typical switching speed of less than 1.5 microseconds. The device supports a wide temperature range from -40°C to 85°C, is compatible with TTL and CMOS logic levels, and includes latch-up proof construction. Its low power dissipation is approximately 1.9mW at ±15V supplies, with charge injection of 5pC at VA = 0V. Suitable for applications in control systems, data logging, aircraft heads-up displays, data acquisition, and signal routing.

View MAX328EWEDatasheet [pdf]

Buy the Maxim Series MAX328EWE Ultra-Low Leakage CMOS Multiplexer: 8-Channel Fault-Tolerant Switch

Purchase the Maxim MAX328EWE online today to ensure high-precision signal routing with ultra-low leakage current and fault-tolerant design. This 8-channel CMOS multiplexer is ideal for high-impedance applications such as op-amps and A/D converters. Operating from 10V to 30V with bidirectional switching, it offers exceptional reliability across a wide temperature range from -40°C to 85°C. Its low power consumption of about 1.9mW and charge injection of only 5pC make it perfect for portable and sensitive control, data logging, and aerospace systems. Order now for dependable performance and seamless integration into your project.

Get Maxim MAX328EWE today—built for ultra-low leakage, high-impedance signal switching, and reliable fault-tolerance in demanding control and data acquisition systems.
