MAXIM INTEGRATED / ANALOG DEVICES DS1233DZ5TR Microprocessor Reset Supervisor
The DS1233D is a low-cost, microprocessor reset supervisor that ensures system stability by monitoring power supply voltage levels. It provides automated restart after power failures, maintains reset for 350 ms after Vcc is in tolerance, and features a precision temperature-compensated voltage reference. Suitable for 5V microprocessors, it reduces the need for discrete components. Available in TO-92 and surface mount SOT-223 packages, it operates from -40°C to +85°C, with adjustable trip points for varied power monitoring applications, ensuring system reliability during power fluctuations.
MAXIM INTEGRATED / ANALOG DEVICES DS1233DZ5TR Microprocessor Reset Supervisor Specifications:
- Voltage on Vcc Pin: -0.5V to +7.0V
- Operating Temperature: -40°C to +85°C
- Reset Active Time: 350 ms
- Vcc Trip Point: 4.5V to 4.75V depending on model
- Internal Pull-Up Resistor: 3.75 kΩ to 6.25 kΩ
- Operating Current: 50 μA typical
- Output Capacitance: 10 pF
- Soldering Temperature: 260°C for 10 seconds
- Package Types: TO-92 and SOT-223
- Detection Accuracy: ±5%, ±10%, or ±15% voltage thresholds
- Vcc Trip Point Tolerance: 4.0V to 4.75V depending on model
- Application: Power supply monitoring and microprocessor reset control
- Compatible with Motorola 68XXX and HC16 microprocessors
- Power Fail Detection with 350 ms delay for system stabilization
- Slew Rate: Up to 1s over voltage transitions
- Sensing via internal comparator and voltage reference technology.

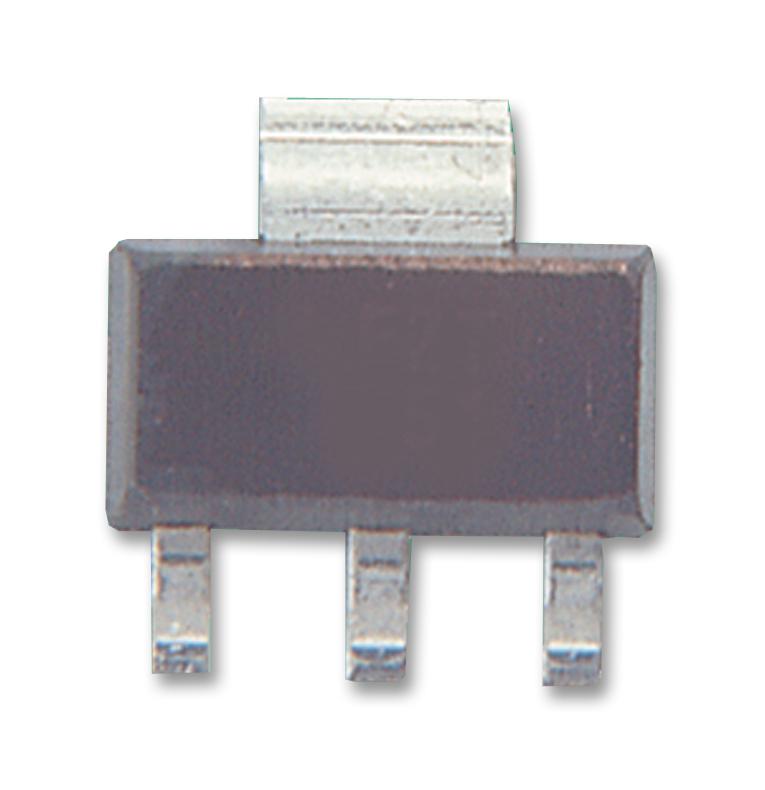

Buy the Buy BW SEMICONDUCTOR DS1233DZ5TR Part Number 5V EconoReset Online
Purchase the BW SEMICONDUCTOR DS1233DZ5TR today for reliable power monitoring and microprocessor reset control. Designed for 5V systems, it ensures system stability during power fluctuations, startup, and shutdown. The device features precision voltage reference, adjustable trip points, and optional delay for reset duration, minimizing system errors. Available in compact TO-92 and SOT-223 packages, it is suitable for many microcontroller applications, offering dependable performance in industrial and embedded systems, with easy online ordering for quick integration into your designs.
Order your BW SEMICONDUCTOR DS1233DZ5TR microprocessor reset supervisor today and experience reliable system power-on reset with adjustable trip points.
