MAXIM INTEGRATED / ANALOG DEVICES MAX738ACWE Step-Down PWM Converter
The MAX738ACWE+ is a 5V step-down, current mode PWM DC-DC converter in a 16-pin WSOIC package. It accepts input voltages from 6V to 16V, delivering up to 750mA. The device offers efficiencies from 85% to 96%, with a quiescent current of 1.7mA and 6μA in shutdown. It ensures precise output regulation and transient response using PWM control, with ±5% output voltage accuracy. The design features a fixed switching frequency, cycle-by-cycle current limiting, undervoltage lockout, overcurrent limiting, programmable soft-start, and a single inductor value for simple external circuitry, ideal for power management and portable electronics.
MAXIM INTEGRATED / ANALOG DEVICES MAX738ACWE Step-Down PWM Converter Specifications:
- Input Voltage Range: 6V to 16V
- Output Voltage: +5V
- Maximum Output Current: 750mA
- Efficiency: 85% to 96%
- Quiescent Current: 1.7mA
- Shutdown Supply Current: 6μA
- Switching Frequency: 159kHz to 212.5kHz
- Output Voltage Accuracy: ±5%
- Cycle-by-Cycle Current Limiting
- Overcurrent Limiting
- Undervoltage Lockout
- Programmable Soft-Start
- Single Inductor Use: no additional design needed
- Package Type: 16-pin WSOIC
- Application: Portable power, electronics power management

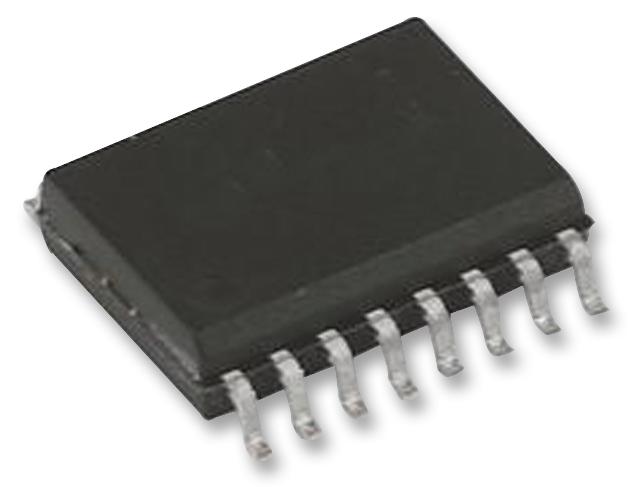

Buy the Buy MAXIM MAX738ACWE Part Number MAX738ACWE Online
Purchase the MAXIM MAX738ACWE today for high-efficiency power conversion in portable devices. This 5V step-down regulator delivers up to 750mA with excellent transient response. Its PWM control ensures precise output regulation, making it ideal for consumer electronics. The device features cycle-by-cycle current limiting, overcurrent protection, undervoltage lockout, and programmable soft-start, all in a compact 16-pin WSOIC package. Easy external component selection with a single inductor value simplifies design, providing reliable power management for portable applications and power supply systems.
Get MAXIM MAX738ACWE today—built for high efficiency, reliable power regulation, and compact design for portable electronic devices.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX738ACWE?
You can click on the BUY or RFQ button to purchase MAX738ACWE from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX738ACWE?
You can download the MAX738ACWE datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX738ACWE?
MAXIM INTEGRATED / ANALOG DEVICES
