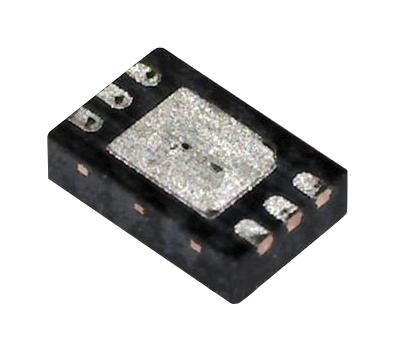

MAXIM INTEGRATED / ANALOG DEVICES DS28C36QT Secure Authenticator
The DS28C36 is a highly secure authenticator integrating cryptographic tools such as ECC-P256 and SHA-256, along with a true random number generator, EEPROM, and unique ID. It supports secure key storage, secure boot, and encrypted data operations with advanced security countermeasures, including active die shields. Suitable for IoT node protection, secure authentication, and firmware integrity, it features a compact TDFN package, low power consumption, and robust I2C communication. Its versatile security functions make it ideal for applications demanding high data security and device authentication.
MAXIM INTEGRATED / ANALOG DEVICES DS28C36QT Secure Authenticator Specifications:
- Supply Voltage: 3.3V ±10%
- Operating Temperature Range: -40°C to +85°C
- Package: 6-pin TDFN-EP (3mm x 3mm)
- EEPROM: 8Kb for user data and keys
- Cryptography: ECC P-256, ECDSA, ECDH, SHA-256, HMAC
- Random Number Generator: NIST SP 800-90B compliant
- GPIO Pins: 2 configurable, with optional authentication control
- Counter: 17-bit, decrement-only, with authenticated read
- Communication Interface: I2C at 100kHz/400kHz
- Max Current (Active): 300 pA, (Standby): 250 nA
- Unique ROM ID: 64-bit, unalterable
- Security Features: Anti-tamper, encrypted key storage, active die shield
- Soldering: Max temperature 260°C for reflow
- Data Retention: 10 years at 85°C
Buy the Maxim DS28C36 – Reliable Secure Authenticator for Industrial Applications
Enhance your security infrastructure with the Maxim DS28C36 secure authenticator, offering advanced cryptographic capabilities including ECC-P256, SHA-256, and a true RNG. Its compact TDFN package, low power consumption, and versatile GPIO features enable secure key storage, firmware authentication, and device integrity for IoT nodes, secure boot, and sensitive data protection. Built with robust anti-tamper mechanisms, encrypted memory, and unique ID, it ensures high-level device security, giving you peace of mind for critical applications. Purchase online today for reliable, high-performance security implementation.
Order your Maxim DS28C36 secure authenticator today and ensure your IoT devices and systems are protected with proven cryptographic security.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES DS28C36QT?
You can click on the BUY or RFQ button to purchase DS28C36QT from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part DS28C36QT?
You can download the DS28C36QT datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of DS28C36QT?
MAXIM INTEGRATED / ANALOG DEVICES
