MAXIM INTEGRATED / ANALOG DEVICES MAX2630EUST Broadband RF Amplifier
The MAX2630/MAX2631/MAX2632/MAX2633 are low-voltage, broadband amplifiers suitable for applications from VHF to microwave frequencies. Operating between +2.7V and +5.5V, these amplifiers feature flat gain response up to 900MHz, low noise figures of around 3.7dB, and a typical gain of 13.4dB. They are ideal for receive, buffer, and transmit use, with internal biasing for MAX2630 and MAX2631, and adjustable bias current for MAX2632 and MAX2633. Compact packages (SOT143, SOT23) make them suitable for space-constrained designs, with shutdown features and minimal external components needed.
MAXIM INTEGRATED / ANALOG DEVICES MAX2630EUST Broadband RF Amplifier Specifications:
- Operation Voltage: +2.7V to +5.5V
- Gain: 13.4dB typical
- Noise Figure: 3.7dB
- Frequency Range: VHF to microwave, flat response up to 900 MHz
- Input/Output Capacitance: Series blocking capacitors recommended
- Supply Current: 6.6mA typical for MAX2630/MAX2631, adjustable in MAX2632/MAX2633
- Shutdown Current: Less than 1A for MAX2631/MAX2633

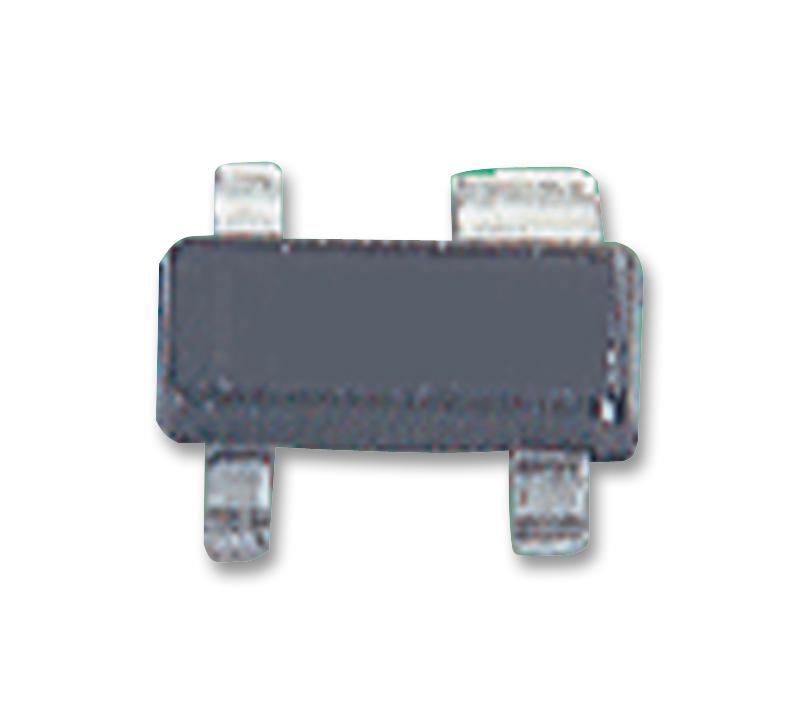

- Package Types: MAX2630 in 4-pin SOT143, MAX2631/ MAX2632 in 5-pin SOT23, MAX2633 in 6-pin SOT23
- Operating Temperature Range: -40°C to +85°C
- Input/Output Return Loss: >10 dB typical from 800-1000 MHz
- Input Voltage Standing Wave Ratio: 1.3:1
- Pin Configurations: Input, Ground, Output, Vcc, Shutdown, Bias resistor
Buy the Maxim MAX2630 – Reliable VHF to Microwave Amplifier for Industrial Applications
Upgrade your wireless and communication projects with the Maxim MAX2630 broadband RF amplifier. Designed for VHF to microwave frequencies, it delivers low noise figure, high gain, and space-efficient packages. Whether for receive, buffer, or transmit applications, this amplifier provides excellent performance with minimal external components, internally biased circuitry, and a shutdown feature. Its compact size makes it ideal for space-constrained designs in industrial, military, or commercial products. Order online today for dependable quality and top-tier RF signal amplification.
Buy Maxim MAX2630 now and experience unmatched reliability and performance in compact RF amplification for your industrial communication systems.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX2630EUST?
You can click on the BUY or RFQ button to purchase MAX2630EUST from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX2630EUST?
You can download the MAX2630EUST datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX2630EUST?
MAXIM INTEGRATED / ANALOG DEVICES
