MAXIM INTEGRATED / ANALOG DEVICES DG411DJ Quad Analog Switch
The DG411DJ from Maxim Integrated Products is a high-performance quad SPST analog switch in a 16-pin PDIP package. It features low on-resistance (maximum 3Ω) with excellent matching and flatness (maximum 4Ω) across the signal range. The device conducts equally well in either direction and is suitable for various applications including sample and hold circuits, test equipment, heads-up displays, guidance and control systems, military radios, communication systems, PBX/PABX systems, battery-operated devices, and audio signal routing. It supports a supply voltage range from 10V to 30V (single supply) or ±4.5V to ±20V (bipolar supply), with an operating temperature range from -40°C to 85°C. The switch is normally closed (NC), with improved charge injection (10pC), low leakage current, and can withstand electrostatic discharge (minimum 2000V). It has a maximum RDS(ON) of 80Ω at 25°C with low power consumption of 35µW, supports rail-to-rail signals, and is TTL/CMOS logic compatible. The DG411DJ is a plug-in upgrade for the industry-standard DG411.
MAXIM INTEGRATED / ANALOG DEVICES DG411DJ Quad Analog Switch Specifications:
- On-Resistance: maximum 3Ω at 25°C
- On-Resistance Match: maximum 4Ω across channels
- Charge Injection: 10pC max
- Leakage Current: less than 5nA at +85°C
- Electrostatic Discharge: withstands minimum 2000V
- Supply Voltage: 10V to 30V (single), ±4.5V to ±20V (bipolar)
- Operating Temperature Range: -40°C to 85°C
- Power Consumption: 35µW max
- Signal Range: rail-to-rail, up to 15V
- Package: 16-pin PDIP
- Maximum RDS(ON): 80Ω
- Device Type: quad SPST analog switch
- Logic Compatibility: TTL/CMOS
- Application Use: signal routing, test equipment, control systems
- Fabrication Process: silicon-gate

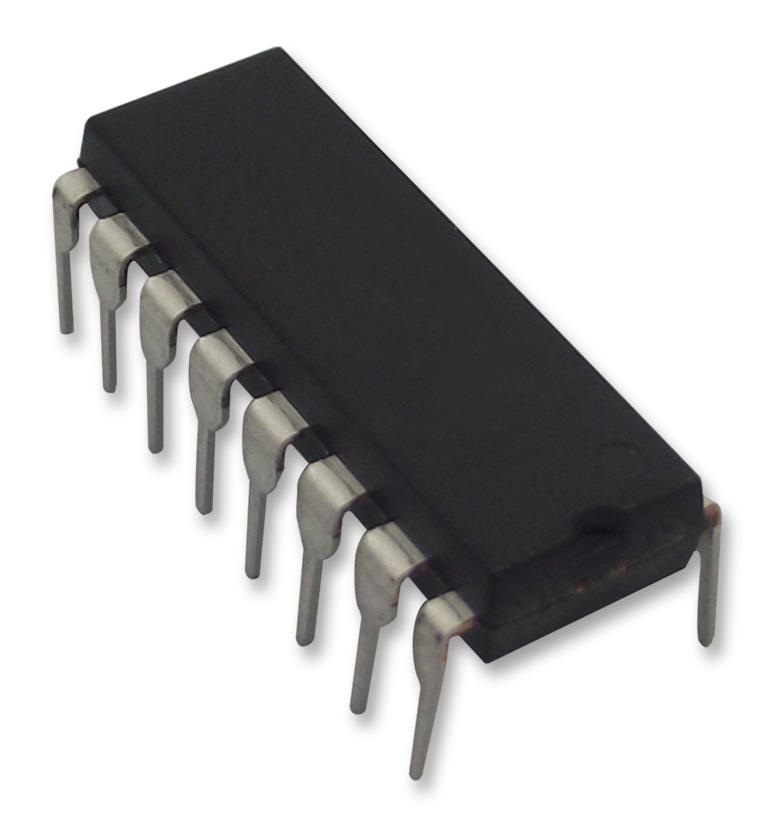

Buy the Buy Maxim DG411DJ Part Number DG411DJ Online
