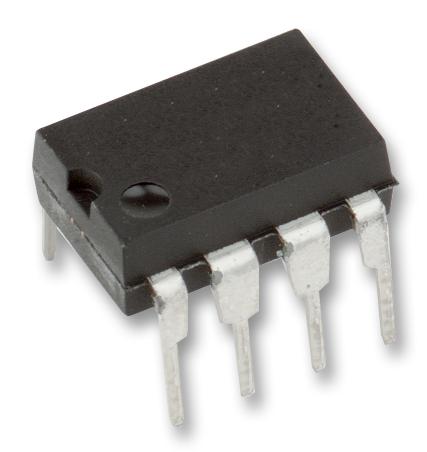

MAXIM INTEGRATED / ANALOG DEVICES ICL7662EPA Charge Pump Inverter
The ICL7662/Si7661 is a monolithic charge pump voltage inverter capable of converting positive voltages from +4.5V to +20V into negative voltages ranging from approximately -4.5V to -20V. It features high efficiency with typical open circuit conversion efficiency of 99.7% and requires only two external capacitors—making it suitable for inexpensive negative power supplies, data acquisition systems, and linear circuit applications such as op amps and supply splitters. Compact, pin-compatible, and ideal for cascaded configurations, it provides reliable voltage inversion for various industrial and electronic applications.
MAXIM INTEGRATED / ANALOG DEVICES ICL7662EPA Charge Pump Inverter Specifications:
- Supply Voltage Range (Lo Voltage): 4.5V to 20V
- Supply Voltage Range (Hi Voltage): 9V to 16.6V
- Output Voltage Range: -4.5V to -20V
- Conversion Efficiency: Typically 99.7%
- External Capacitors: 2 x 10μF electrolytic capacitors recommended
- Maximum Power Dissipation: 800mW (Plastic DIP), 500mW (CERDIP)
- Operating Temperature Range: -40°C to +85°C (Extended) and +25°C (Commercial)
- Pin Compatibility: ICL7660
- Maximum Power Dissipation: 800mW (Plastic DIP), 500mW (CERDIP)
- Cascading: Up to 10 devices for higher negative voltage output
- Package Types: Plastic DIP, 14-SO, SOIC, Dice
- Absolute Max Voltage: V+ to GND +0.3V
- Input Oscillator Frequency: 10 kHz (nominal)
- Output Source Resistance: 70Ω to 250Ω depending on load
- Operating Power Range: Up to 90% efficiency at nominal conditions
Buy the Maxim ICL7662 – Reliable Charge Pump for Industrial Applications
Purchase the Maxim ICL7662 series online today to access a high-efficiency charge pump inverter capable of transforming positive voltages into negative outputs. Perfect for low-cost applications such as negative power supplies, data acquisition, and linear circuits, this device features only two external capacitors for simple implementation. Its high efficiency of up to 99.7% and compatibility with cascaded configurations make it an ideal choice for reliable, precise voltage inversion in industrial and electronic projects. Secure your supply now for dependable operation.
Order your Maxim ICL7662 series voltage inverter today and ensure your projects benefit from high efficiency and stable negative voltage generation.
