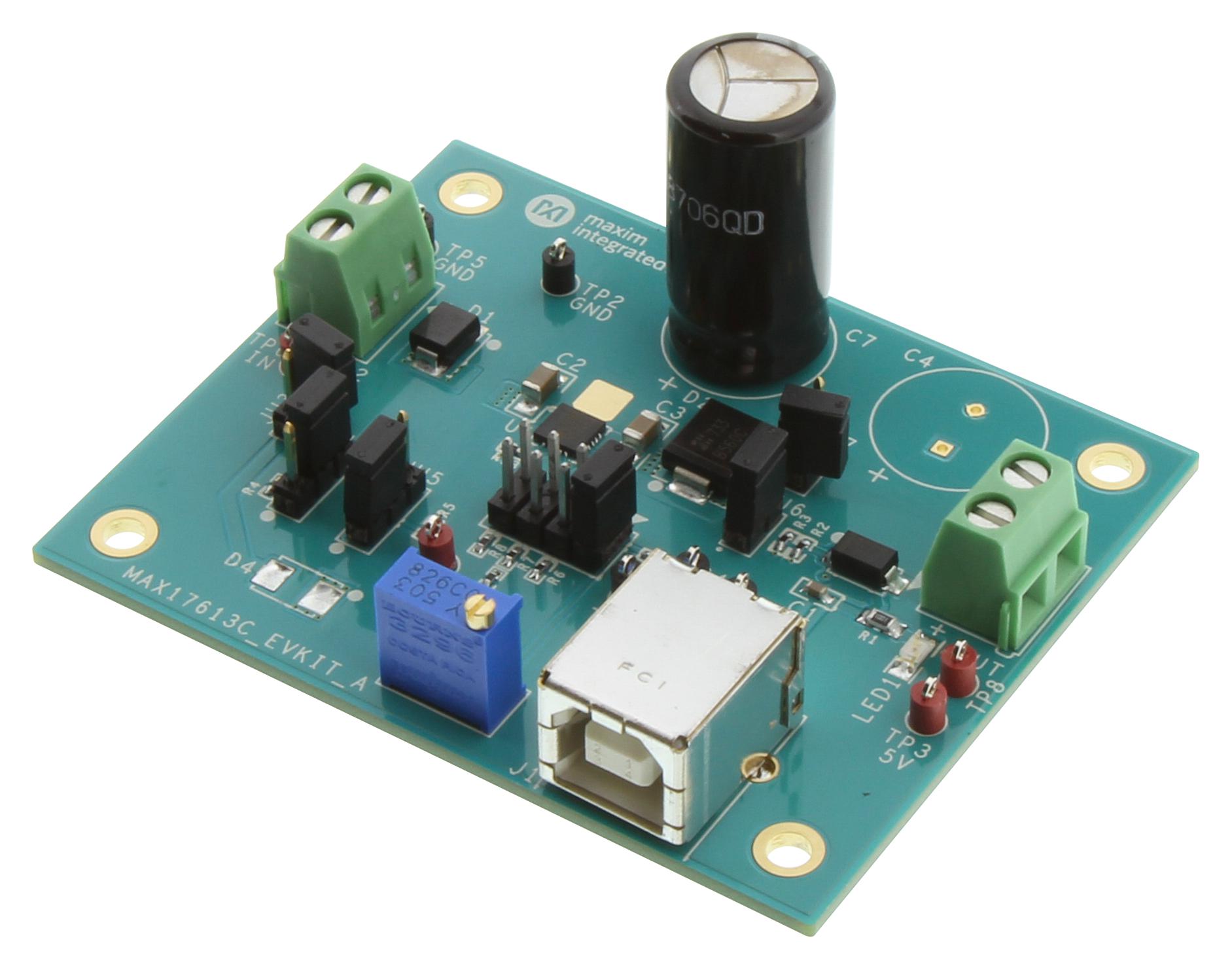

MAXIM INTEGRATED / ANALOG DEVICES MAX17613CEVKIT Reverse Voltage Protector Kit
This evaluation kit is designed for the MAX17613C, a reverse voltage protector capable of handling 4.5V to 60V and up to 3A. It features a 40V TVS diode across the input and a Schottky diode at the output, allowing testing of three current limit types and thresholds. The kit includes jumper-configurable current limit settings and current limit type, as well as a programmable start-up blanking time. It also provides fault indication signals for easy monitoring. The PCB layout is proven, and the kit comes fully assembled and tested for convenient evaluation.
MAXIM INTEGRATED / ANALOG DEVICES MAX17613CEVKIT Reverse Voltage Protector Kit Specifications:
- Operating Voltage Range: 4.5V to 60V (with TVS Diode in circuit)
- Maximum Reverse Voltage: 60V
- Continuous Current Limit: Up to 3A
- Fault Indication Signals: FWD, REV
- Programmable Startup Blanking Time
- Current Limit Threshold: 0.15A to 3A (programmed via resistor Rget)
- Input Power Supply: 4.5V to 60V DC
- Input Diode: 40V TVS Diode, Schottky Diode at Output
- Tested and Fully Assembled PCB Layout
- Jumper Configurable Current Limit and Type (Autoretry, Continuous, Latchoff)
- Component Highlights: Capacitors, Diodes, Resistors, Test Points
- Enables testing of reverse voltage protection with adjustable current limits
- Includes fault detection and status indication signals
Buy the Maxim Integrated MAX17613CEVKIT – Reliable Reverse Voltage Protector for Industrial Applications
Purchase the Maxim Integrated MAX17613CEVKIT online today to experience reliable and efficient reverse voltage protection testing. Fully assembled and tested, this kit offers configurable current limit options, fault signals, and proven PCB layout for quick deployment in industrial, automation, and electronic device applications. Designed for easy setup, it ensures precise testing of three current limit types and thresholds, making it an essential tool for engineers seeking high-quality reverse voltage protection solutions that deliver long-term performance and safety.
Get Maxim Integrated MAX17613CEVKIT today—built for precision and long-lasting durability in reverse voltage protection testing.
