MAXIM INTEGRATED / ANALOG DEVICES MAX5489EUD Digital Potentiometer

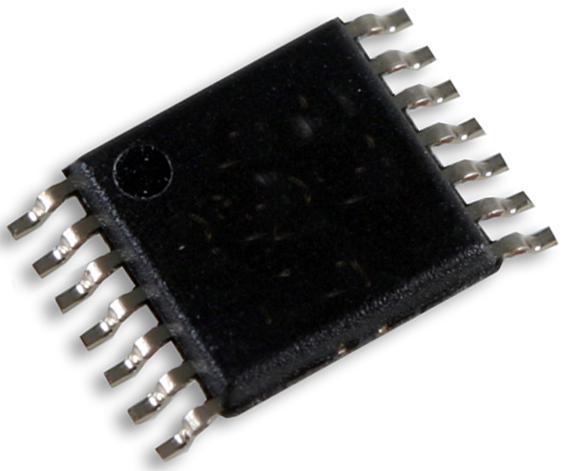

The MAX5489EUD+ is a dual non-volatile linear taper digital potentiometer housed in a 14-pin TSSOP package. It features two 256-position potentiometers controlled via a three-wire SPI interface. The device includes an internal EEPROM that stores wiper positions and recalls them upon power-up, reducing setup time and ensuring consistent operation. It is suitable for low-drift programmable gain circuits, offering a supply voltage range of 2.7V to 5.25V and an operating temperature range from -40°C to 85°C. The potentiometer provides high reliability with 200,000 wiper store cycles and a data retention of 50 years. In voltage divider mode, it has a differential nonlinearity of ±0.5 LSB and an integral nonlinearity of ±1 LSB. This component is ideal for signal processing applications where precise, retrievable resistance adjustments are required.
MAXIM INTEGRATED / ANALOG DEVICES MAX5489EUD Digital Potentiometer Specifications:
- Package: 14-pin TSSOP
- Number of Potentiometers: 2
- Tap Positions: 256 per potentiometer
- Technology: Linear taper
- Control Interface: SPI compatible 3-wire
- Wiper Storage Cycles: 200,000
- Data Retention: 50 years
- Supply Voltage Range: 2.7V to 5.25V
- Temperature Range: -40°C to 85°C
- Differential Nonlinearity: ±0.5 LSB (voltage divider mode)
- Integral Nonlinearity: ±1 LSB
- End-to-end Resistance: 100kΩ
- Application: Programmable gain, signal adjustment, low-drift controls
Buy the Maxim MAX5489U – Reliable Digital Potentiometer for Industrial Applications
Enhance your signal processing setup with the MAX5489EUD+ dual digital potentiometer. Featuring a 14-pin TSSOP package, 256 tap positions, non-volatile memory, and a SPI interface, this device provides precise and repeatable resistance adjustments. With a high durability of 200,000 cycles and a 50-year data retention, it ensures long-term stability and accuracy for programmable gain circuits, low-drift applications, and complex control systems. Upgrade your designs with this reliable component for all industrial precision resistive adjustments.
Buy Maxim MAX5489U now and experience unmatched reliability and precision in digital resistance control.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX5489EUD?
You can click on the BUY or RFQ button to purchase MAX5489EUD from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX5489EUD?
You can download the MAX5489EUD datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX5489EUD?
MAXIM INTEGRATED / ANALOG DEVICES
