MAXIM INTEGRATED / ANALOG DEVICES MAX16926GTPV Automotive Power Management IC
The MAX16926 is a comprehensive automotive power-management IC designed for TFT display systems, including four channels for regulated voltages such as 3.3V, 1.8V, and 1.1V. It integrates a high-voltage buck converter, linear regulators, and a watchdog timer, ensuring reliable power supply with overcurrent and thermal protections. Its compact TQFN package supports a wide operating temperature from -40°C to 105°C, making it ideal for automotive infotainment and instrument cluster applications. The device simplifies system design with a single start control pin and multiple power-good indicators, optimizing efficiency and robustness in demanding environments.
MAXIM INTEGRATED / ANALOG DEVICES MAX16926GTPV Automotive Power Management IC Specifications:

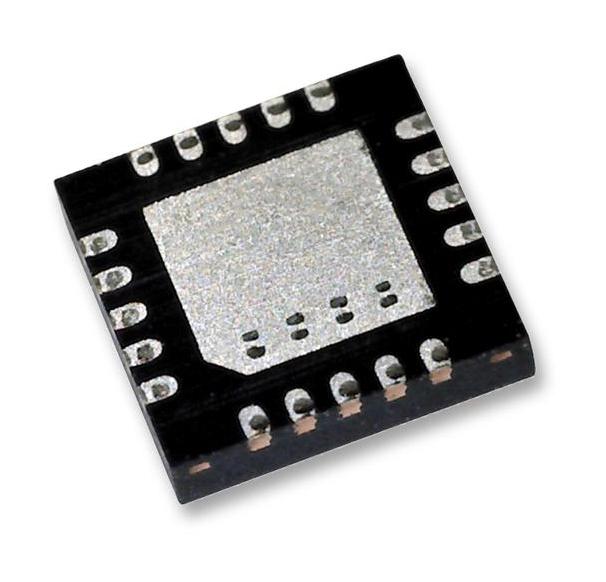

- Package: TQFN 20-pin, 4mm x 4mm
- Supply Voltage Range: 3.5V to 40V
- High-Voltage Buck Converter Output: 3.3V, up to 2.1A
- Low-Voltage Buck Converter Output: 1.1V, up to 1.6A
- Linear Regulators: 3.3V (LDO1), 1.8V (LDO2), 100mA and 175mA respectively
- Operating Temperature: -40°C to 105°C
- Switching Frequencies: 400kHz, 2.0MHz, 2.2MHz (programmable via RT resistor)
- Protection Features: Thermal shutdown, current limit, hiccup mode for short circuits
- Watchdog Timer: Active when WAKE or START are high, timeout approximately 1600ms
- Power-Good Outputs: PGOOD, PGB, PG1 signals for system status monitoring
- Input Pins: START, WAKE, FIN, WDI, RT, BATT, GND, PGND
- Efficiency: Up to 99% for buck converters, low quiescent current in low-power modes
- Suitable for automotive infotainment and instrument cluster systems, ensuring reliable operation in harsh conditions.
Buy the Maxim MAX16926 – Reliable Automotive Power Management IC for TFT Displays
Get your automotive display system powered reliably with the MAX16926, a comprehensive 4-channel power-management IC. Featuring high-efficiency buck converters, linear regulators, integrated watchdog, and robust protections — all in a compact TQFN package designed for harsh automotive environments. Ensure system stability and safety with simple start-up control and multiple power-good signals. Perfect for infotainment displays and instrument clusters, this device simplifies your design while delivering dependable performance. Buy online today and enhance your vehicle’s electronic systems with confidence.
Buy Maxim MAX16926 now and experience unmatched reliability and performance in automotive display systems.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX16926GTPV?
You can click on the BUY or RFQ button to purchase MAX16926GTPV from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX16926GTPV?
You can download the MAX16926GTPV datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX16926GTPV?
MAXIM INTEGRATED / ANALOG DEVICES
