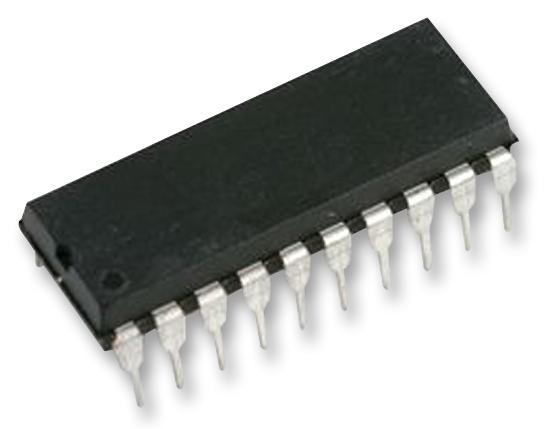

MAXIM INTEGRATED / ANALOG DEVICES MAX203CPPG36 RS-232 Transceiver
The MAX203CPP+G36 is a compact 20-pin DIP RS-232 transceiver designed for 5V single supply operation with integrated charge pump circuitry. It incorporates dual charge pumps to generate the required voltages for RS-232 signals, eliminating the need for a bipolar ±12V power supply. The device features two drivers and two receivers, maintaining industry-standard signal levels at data rates over 120 Kbps. Its small footprint, no external components—thanks to built-in 0.1μF capacitors—and low power consumption around 8mA make it ideal for portable, medical, and communication applications within the 0°C to 70°C temperature range.
MAXIM INTEGRATED / ANALOG DEVICES MAX203CPPG36 RS-232 Transceiver Specifications:
- Package: 20-pin DIP
- Operating Voltage Range: 4.75V to 5.25V
- Number of Drivers: 2
- Number of Receivers: 2
- Charge Pump Circuitry: Integrated, no external components needed
- Capacitors: 0.1μF internal capacitors
- Signal Levels: ±5V industry standard
- Data Rate: exceeds 120 Kbps
- Operating Temperature Range: 0°C to 70°C
- Power Consumption: approximately 8mA
- Transition Slew Rate: 5.5V/μs
- Applications: Communications, networking, portable, medical devices
Buy the Buy MAXIM Integrated MAX203CPPG36 Online
Experience seamless serial communication with the MAXIM MAX203CPPG36 transceiver. Designed for 5V single supply systems, it features integrated charge pump circuitry, eliminating the need for external power supplies. Compact and efficient, it operates at data rates over 120 Kbps, ideal for portable, medical, and networking devices. With no external components required thanks to built-in 0.1μF capacitors, it ensures reliable signal levels and low power consumption of around 8mA. Perfect for space-constrained and power-sensitive applications.
Buy MAXIM Integrated MAX203CPPG36 now and enjoy reliable single-supply RS-232 communication for portable and medical applications.
