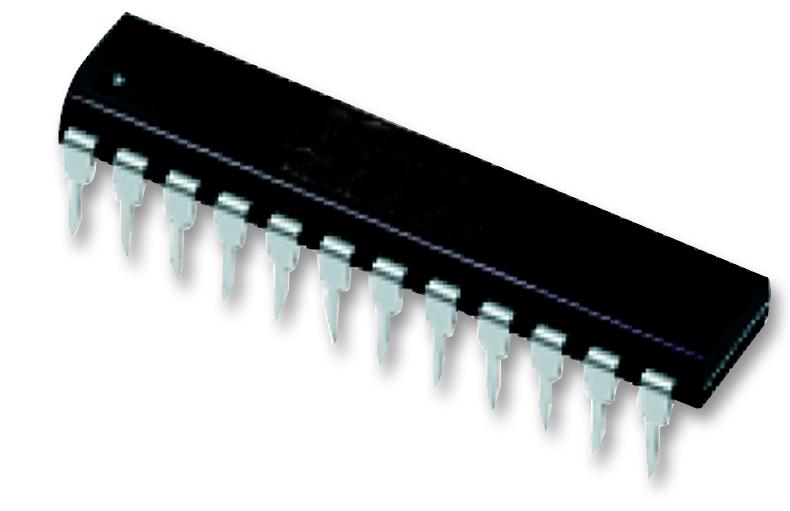

MAXIM INTEGRATED / ANALOG DEVICES MAX236CNG RS-232 Driver Receiver
The MAX236CNG+ is a 5V-powered multichannel RS-232 driver and receiver in a 24-pin DIP package. Designed for all EIA/TIA-232E and V.28/V.24 communication interfaces, it is ideal for applications where ±12V supplies are not available. The device features four sections: a dual charge pump DC-DC voltage converter, RS-232 drivers, RS-232 receivers, and enable control inputs for receiver and transmitter functions. The integrated charge pump circuitry allows operation from a single +5V supply, eliminating the need for bipolar ±12V power supplies. It is suitable for interface translation and multidrop RS-232 network applications.
MAXIM INTEGRATED / ANALOG DEVICES MAX236CNG RS-232 Driver Receiver Specifications:
- Supply Voltage Range: 4.5V to 5.5V
- Operating Temperature Range: 0°C to 70°C
- Number of RS-232 Drivers: 4
- Number of RS-232 Receivers: 3
- Maximum Data Rate: 120 Kbps
- Transition Slew Rate: 5.1 V/µs
- Power Consumption: 7mA no load, 1µA shutdown current
- Package Type: 24-pin DIP
- Internal charge pump circuitry for operation from a single +5V source
- Supports interface translation and multidrop RS-232 networks
- Low power, compact design suitable for portable and medical devices
Buy the Maxim MAX236CNG+ – Reliable RS-232 Driver and Receiver for Industrial Applications
Invest in the Maxim MAX236CNG+ for your communication needs. This 24-pin RS-232 driver and receiver module operates from a single +5V supply, using integrated charge pump technology. It features four high-speed channels capable of up to 120 Kbps data rate, with low power consumption and compact design ideal for portable, medical, and networking equipment. The device ensures reliable signal transmission in applications where ±12V supplies are unavailable, offering excellent performance, minimal noise, and space-saving benefits for your projects.
Buy Maxim MAX236CNG+ now and experience reliable interface translation with integrated charge pump for portable and industrial communication systems.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX236CNG?
You can click on the BUY or RFQ button to purchase MAX236CNG from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX236CNG?
You can download the MAX236CNG datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX236CNG?
MAXIM INTEGRATED / ANALOG DEVICES
