MAXIM INTEGRATED / ANALOG DEVICES MAX11102AUBV High-Speed ADC
The MAX11102 MAX11103/MAX11105/MAX11106/MAX11110/MAX11111/MAX11115/MAX11116/MAX11117 are high-speed, low-power, 12-/10-/8-bit successive approximation ADCs. Operating from 2.2V to 3.6V, they feature a serial interface with data rates up to 3Msps, dual or single-ended inputs, internal or external references, and various package options. These compact converters include a high-dynamic-range sample-and-hold, power-down modes, and interface compatibility with SPI, QSPI, and MICROWIRE, ideal for portable and battery-powered data acquisition applications, medical devices, and communication systems.
MAXIM INTEGRATED / ANALOG DEVICES MAX11102AUBV High-Speed ADC Specifications:
- Resolution: 8, 10, 12 bits
- Sampling Rates: 2Msps / 3Msps
- Supply Voltage: 2.2V to 3.6V
- Power Consumption: 3.7mW at 2Msps / 5.2mW at 3Msps
- Serial Interface: SPI/QSPI/MICROWIRE compatible
- Input Voltage Range: OV to VREF or VDD depending on configuration
- Package Options: 6-pin SOT23, 10-pin uMAX, 10-pin TDFN, 6-pin SOT23
- Operating Temperature: -40°C to +125°C
- Input Channels: Single-ended or dual with channel select
- Reference: Internal or external (with reference input range 1V to Vop)
- Offset Error: Typically within a few LSBs
- Line Rejection: 0.17 LSB/V
- Total Harmonic Distortion: Typically below -85 dB
- SFDR: Up to 85 dB
- Power-down mode for low power operation
- Aperture Delay: 4 ns
- Aperture Jitter: 15 ps
- Conversion cycle: 260 ns to 391 ns depending on model

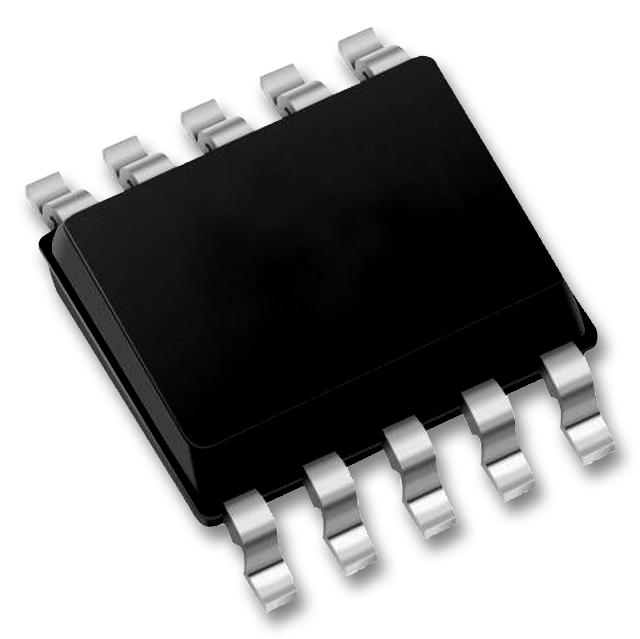

Buy the Buy Maxim Integrated ADC Part Number MAX11102AUBV Online
Experience exceptional data acquisition with the high-speed, low-power Maxim Integrated ADC MAX11102AUBV. Offering 12-bit resolution at 2Msps or 3Msps, this compact ADC supports multiple interface protocols including SPI, QSPI, and MICROWIRE. Its versatile input range, internal or external reference options, and various packages make it ideal for portable, medical, and communication systems. Enjoy minimal power consumption, fast conversion times, and robust operation over -40°C to +125°C while seamlessly integrating into your design to enhance performance and reliability.
Buy Maxim Integrated MAX11102AUBV now and experience unmatched reliability and performance with high-speed, low-power sampling for your applications.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX11102AUBV?
You can click on the BUY or RFQ button to purchase MAX11102AUBV from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX11102AUBV?
You can download the MAX11102AUBV datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX11102AUBV?
MAXIM INTEGRATED / ANALOG DEVICES
