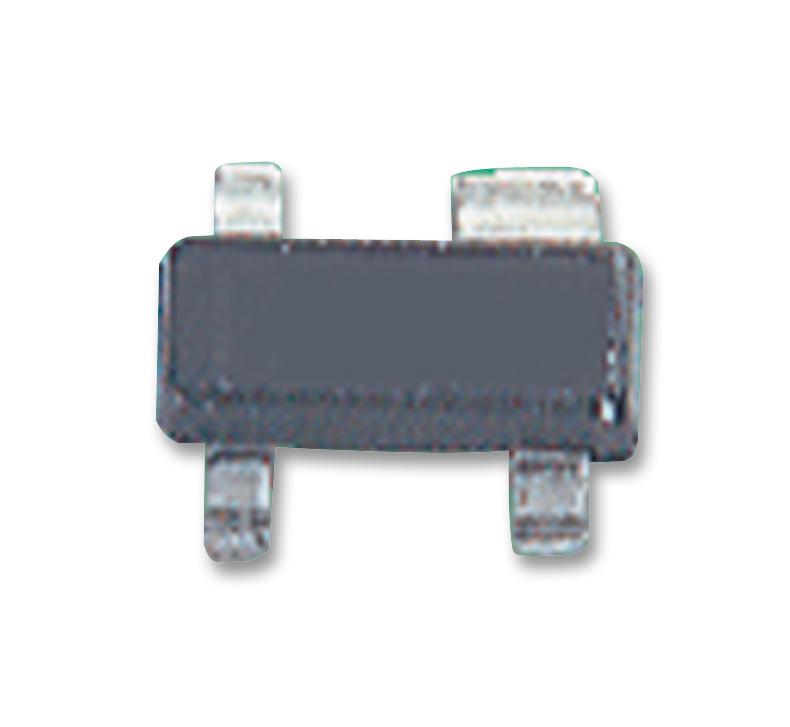

MAXIM INTEGRATED / ANALOG DEVICES MAX6838XSD3T Voltage Detector
The MAX6838XSD3T is an ultra-low-voltage voltage detector and microprocessor supervisory circuit designed for portable and battery-powered systems. Operating from a supply voltage of 1.1V to 3.3V, it features an adjustable reset threshold, push-pull active-high reset output, and an external reset input for flexible monitoring. This device provides reliable power management, immune to short negative Vcc transients, with low supply current of 7.5µA. Its compact SC70 package makes it ideal for space-constrained applications requiring precise supply supervision and manual reset functionality.
MAXIM INTEGRATED / ANALOG DEVICES MAX6838XSD3T Voltage Detector Specifications:
- Supply Voltage Range: 1.1V to 3.3V
- Reset Threshold Voltage: 1.050V (suffix F)
- Reset Output: Push-Pull, Active-High
- Manual Reset Input: Yes, external debounce optional
- Reset Delay: 210ms (suffix D3)
- Operating Temperature: -40°C to +85°C
- Supply Current: 7.5µA (typ)
- Package: SC70-4
- Input Voltage (RESET-IN): Adjustable via external resistors
- Input Leakage Current: -25nA
- Propagation Delay: 70µs
- Power-up Reset Delay: 150µs
- RoHS Compliant, Pb-Free
Buy the Maxim MAX6838XSD3T – Reliable Voltage Detector for Industrial Applications
Order the MAX6838XSD3T today to benefit from its ultra-low-voltage detection, adjustable reset threshold, and space-saving SC70 package. This reliable voltage detector enhances power management in portable and battery-powered devices, ensuring stable operation during power-up, brownout, and short voltage dips. Its low supply current of only 7.5µA makes it ideal for energy-efficient applications. With manual reset capability and immunity to transient glitches, it provides robust system supervision for critical applications. Secure your supply stability now.
Buy Maxim MAX6838XSD3T now and ensure precise power supervision with low power consumption in your portable systems.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX6838XSD3T?
You can click on the BUY or RFQ button to purchase MAX6838XSD3T from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX6838XSD3T?
You can download the MAX6838XSD3T datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX6838XSD3T?
MAXIM INTEGRATED / ANALOG DEVICES
