MAXIM INTEGRATED / ANALOG DEVICES MAXREFDES7 Industrial Power Supply Module

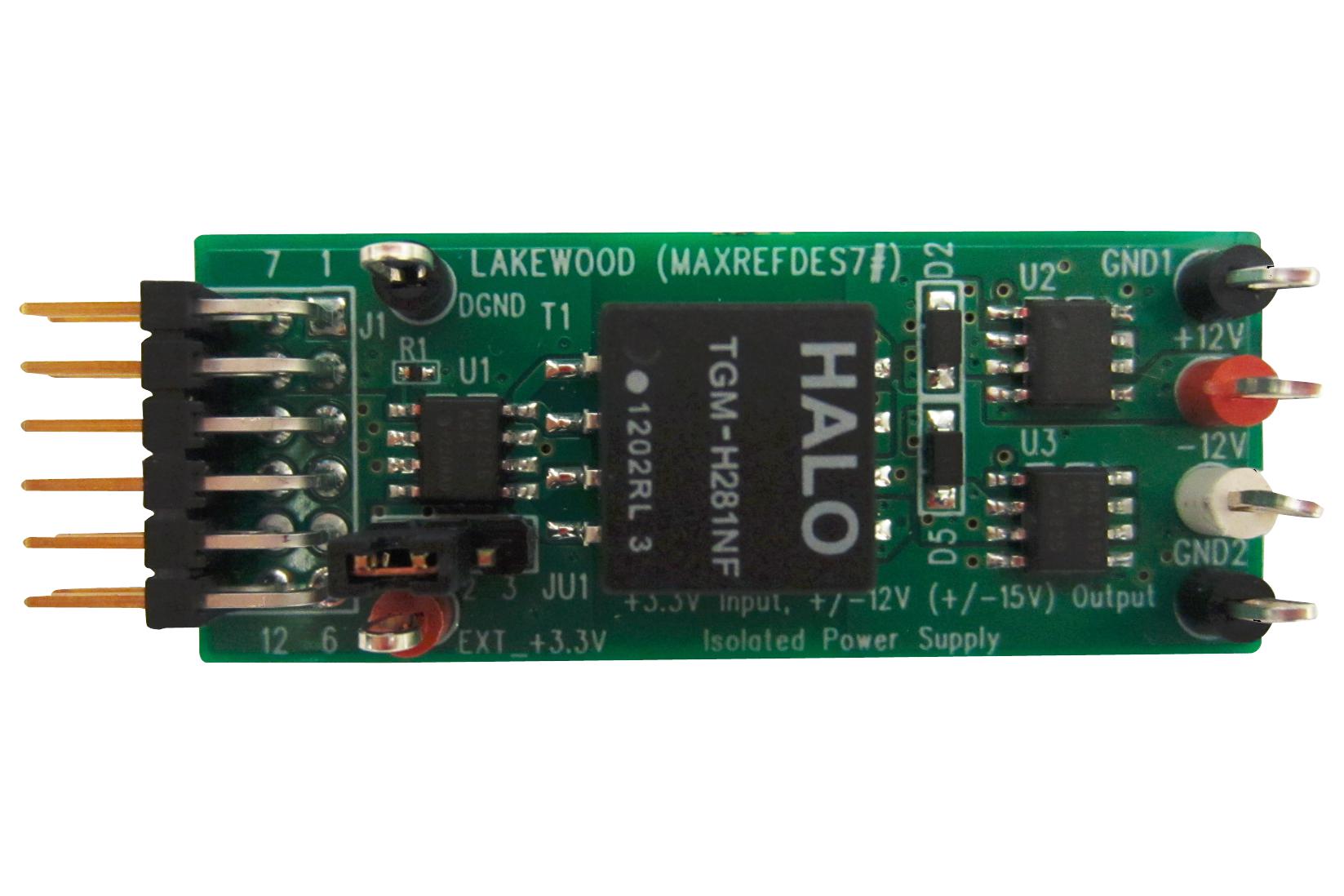

The Lakewood system board integrates an isolated power supply design using an H-bridge transformer, dual LDO regulators, and a TGM transformer to generate +12V and -12V outputs from a 3.3V input. Its compact form factor supports industrial sensors, automation, and process control applications. The design features high efficiency, low ripple, and adjustable output voltages through feedback resistor changes. It operates with UL and EN recognized insulation standards, with a 1500VRMS isolation voltage, ensuring safety and reliable performance for industrial environments.
MAXIM INTEGRATED / ANALOG DEVICES MAXREFDES7 Industrial Power Supply Module Specifications:
- Operating Input Voltage: 3.3V DC
- Output Voltages: +12V and -12V (adjustable with resistor changes)
- Isolation Voltage: 1500VRMS
- Transformer Turns Ratio: 1:2.6
- Switching Frequency: approximately 475kHz
- Transformer: TGM-H281NF from Halo Electronics
- Efficiency: up to 80% at rated load
- Maximum Load Current: approximately 90mA (set for +12V), 40mA (set for +15V)
- Ripple: below 0.5% of output voltage
- Protection: Zener diodes limit input voltage below 16.1V
- Form Factor: Pmod™ compatible
- Standards: UL 60950, EN 60950
Buy the Buy MAXREFDES7 Isolated Power Supply Part Number MAXREFDES7 Online
Purchase the MAXREFDES7 system board online today and enjoy a compact, reliable power solution designed for industrial automation, sensors, and control applications. This isolated power supply offers adjustable +12V and -12V outputs, UL and EN safety standards, high efficiency, low ripple, and robust insulation. Its small footprint makes it ideal for integration into various industrial environments, ensuring stable operation and safety compliance. Order now to enhance your automation projects with this dependable power management solution.
Buy MAXREFDES7 system board now and experience reliable, efficient industrial power solutions with adjustable outputs and robust insulation standards.
