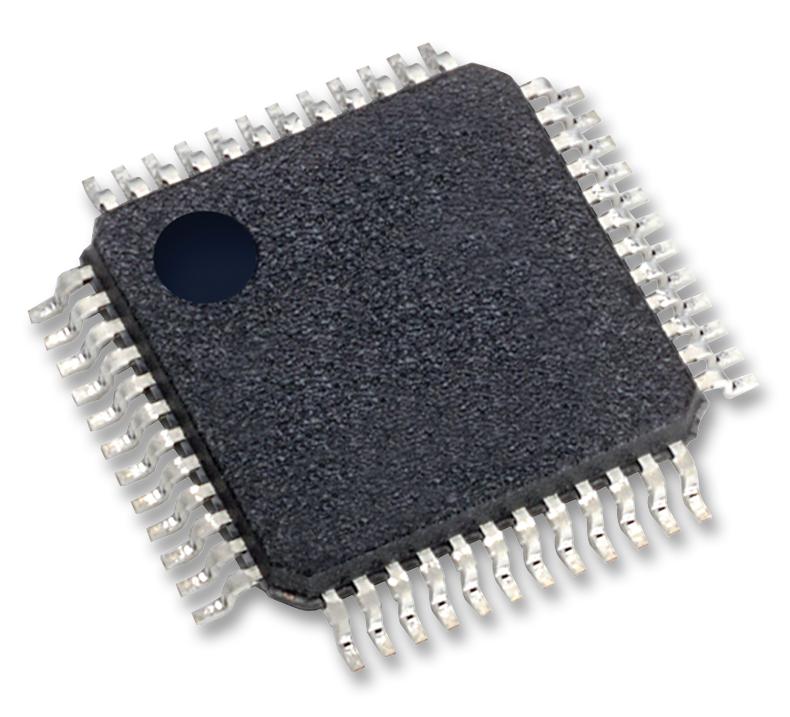

MAXIM INTEGRATED / ANALOG DEVICES MAX1184ECMD High-Resolution ADC
The MAX1184ECM+D is a dual 10-bit, 20Msps, low-power ADC operating at 3V with internal reference and parallel CMOS outputs. It features fully differential wideband track-and-hold inputs, two pipelined 9-stage ADCs with 400MHz bandwidth, and supports differential and single-ended inputs. Power modes include sleep at 2.8mA and shutdown at 1µA. An internal 2.048V reference sets the full-scale range, with external reference options for higher accuracy. It operates from -40°C to 85°C, consumes 105mW, and offers a wide ±1Vpp differential input, ideal for imaging, signal processing, and video applications.
MAXIM INTEGRATED / ANALOG DEVICES MAX1184ECMD High-Resolution ADC Specifications:
- Resolution: 10 Bits
- Sampling Rate: 20Msps
- Supply Voltage: 2.7V to 3.6V
- Power Dissipation: 105mW
- Operating Temperature Range: -40°C to +85°C
- Input Voltage Range: ±1Vpp differential
- Input Bandwidth: 400MHz (-3dB)
- Reference Voltage: 2.048V internal, external reference support
- Output Format: Parallel CMOS, offset binary or two’s complement
- Digital Outputs: 48 pins with 3-state capability
- Power Modes: Sleep mode at 2.8mA, Power-down at 1µA
- Package: 48-pin TQFP with exposed pad
- Analog Input: Fully differential wideband track-and-hold inputs, suitable for both differential and single-ended inputs
Buy the Maxim MAX1184 U–2013 Reliable ADC for Industrial Applications
Purchase the Maxim MAX1184 online today to enhance your signal processing and imaging projects. This high-speed, low-power ADC features internal reference, differential inputs, and parallel CMOS outputs, optimized for industrial, video, and instrumentation applications. With a 20Msps sampling rate, 10-bit resolution, and operation from a single 3V supply, it ensures accurate and efficient data conversion. Its compact 48-pin TQFP package includes power-saving modes and supports external references for increased flexibility, making it ideal for demanding high-speed measurement systems.
Get Maxim MAX1184 today—built for precision, low power, and high-speed data acquisition.
