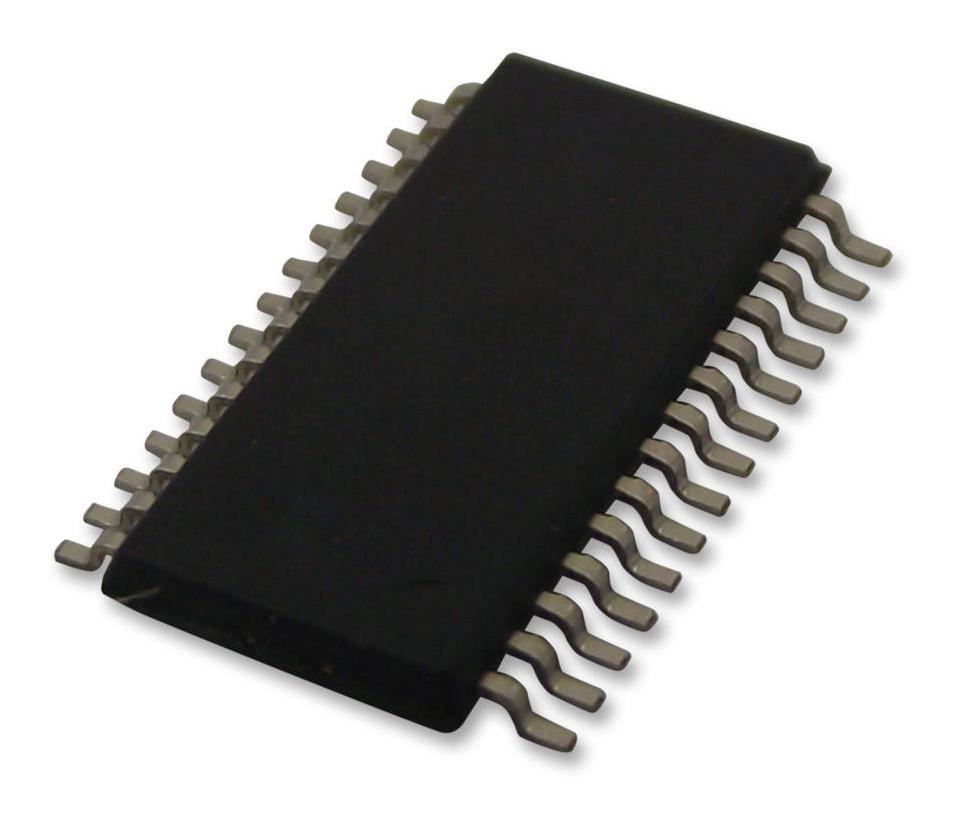

MAXIM INTEGRATED / ANALOG DEVICES MAX1270AEAI Multirange ADC
The MAX1270AEAI is a multirange, 12-bit data acquisition system that requires only a single +5V supply, featuring eight independently programmable analog input channels with various voltage ranges. It offers fault protection up to +16.5V, a 5MHz bandwidth track/hold, and supports internal or external clocking for a throughput rate of 110ksps. Its serial interface is compatible with SPI, QSPI, and MICROWIRE, and it includes power-down modes for low current operation, making it suitable for industrial automation, data acquisition, and control systems requiring reliable, flexible analog-to-digital conversion in a compact package.
MAXIM INTEGRATED / ANALOG DEVICES MAX1270AEAI Multirange ADC Specifications:
- Resolution: 12-bit
- Input Channels: 8
- Analog Input Ranges: various, including 0 to +10V, 0 to +5V, +VREF, +VREF/2
- Supply Voltage: +5V
- Maximum Overvoltage Tolerance: +16.5V
- Bandwidth: 5MHz
- Sampling Rate: 110ksps
- Interface: SPI/QSPI/MICROWIRE compatible
- Power-Down Modes: standby and full power-down
- Input Voltage Range: configurable for bipolar and unipolar modes
- Reference: internal 4.096V or external
- Package Types: 24-pin narrow PDIP, 28-pin SSOP
- Fault Protection: limits fault current to less than 2mA across channels
- Temperature Range: 0°C to +70°C
Buy the Maxim MAX1270AEAI – Reliable Multirange ADC for Industrial Applications
Purchase the Maxim Series MAX1270AEAI online today and benefit from its high-speed, fault-tolerant, multirange 12-bit analog-to-digital conversion. With eight programmable channels, internal or external references, and low power modes, this ADC is ideal for industrial automation, data acquisition, and sensor interfacing. Its compatibility with SPI, QSPI, and MICROWIRE ensures seamless integration into various systems. Get the highest reliability and performance for your projects by ordering now from our trusted online platform.
Order your Maxim Series MAX1270AEAI today and enhance your industrial control systems with our reliable 12-bit, eight-channel data acquisition solution.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX1270AEAI?
You can click on the BUY or RFQ button to purchase MAX1270AEAI from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX1270AEAI?
You can download the MAX1270AEAI datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX1270AEAI?
MAXIM INTEGRATED / ANALOG DEVICES
