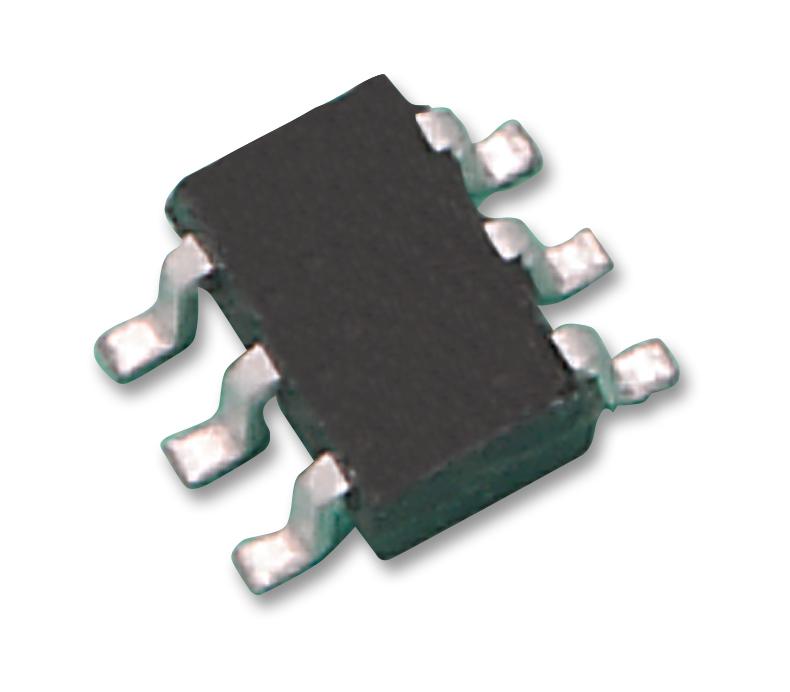

The MAX2471EUT+T is a 10MHz to 500MHz VCO buffer amplifier with differential outputs in 6 pin SOT-23 package. It is useful as a differential buffer stage or to convert from a differential input to two single ended outputs. This is flexible, low cost, high reverse isolation buffer amplifier for applications with discrete and module based VCO designs. It offers differential input and operates from 10MHz to 500MHz. It features high input impedance for maximum flexibility, enabling them to be used with a variety of oscillator topologies. High reverse isolation combined with low supply current makes them ideal for applications requiring high performance with low power. It is used in cellular and PCS mobile phones, ISM-band applications, active baluns and general purpose buffers/amplifiers.




Supply voltage range is 2.7V to 5.5V

Operating temperature range from -40°C to 85°C

Power gain at 200MHz is >14dB

74dB typical reverse isolation at 100MHz

Low distortion output drive

Voltage gain is 16V/V at fIN = 10MHz

Consumes 5.5mA of supply current

Harmonic suppression of -29dBc at fIN = 500MHz, POUT = -5dBm
