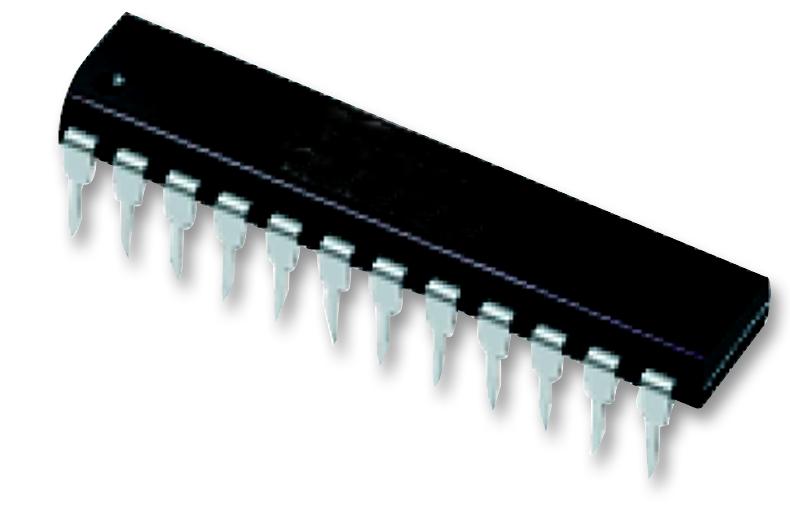

MAXIM INTEGRATED / ANALOG DEVICES MAX132CNG High-Resolution ADC
The MAX132 is an 18-bit CMOS analog-to-digital converter (ADC) designed for high-resolution data acquisition. It features multi-slope integration for fast conversions up to 100 per second, with low noise and guaranteed accuracy at 512mV full-scale input. Its serial interface supports microprocessors, and twos-complement output simplifies bipolar measurements. Applications include remote data logging, weight scales, industrial control, and sensor measurement, thanks to its compact size, low power, and high precision performance. It comes in various temperature-rated packages, suitable for demanding industrial environments.
MAXIM INTEGRATED / ANALOG DEVICES MAX132CNG High-Resolution ADC Specifications:
- Resolution: 18 bits
- Resolution (Volts/LSB): 2μV/LSB at full scale
- Full-scale input range: +512mV (typical)
- Conversion Time: Up to 100 conversions/sec
- Supply Voltage: +4.5V to +5.5V
- Negative Supply Voltage: -4.5V to -6.5V
- Input Current: 2pA typical
- Noise: 15μVRMS
- Temperature Range: -55°C to +125°C (depending on package)
- Power Consumption: 60μA (normal), 1μA (sleep mode)
- Packages: 24-pin narrow DIP, wide SO, and dice
- Serial interface: 4-wire with programmable outputs
- Line frequency rejection: 50Hz/60Hz via mode selection
Buy the Buy MAXIM MAX132CNG Part Number MAX132CNG Online
Order the MAXIM MAX132CNG now to enhance your data acquisition systems with this high-resolution 18-bit CMOS ADC. Its multi-slope integration provides fast and accurate conversions suitable for weight scales, sensors, and industrial control applications. Featuring a serial interface, low noise, and a wide temperature range, the MAX132 ensures reliable performance in demanding environments. Ideal for remote data loggers, transducers, and measurement systems, it offers low power consumption, compact size, and external programmability. Purchase online today for efficient integration into your electronic projects and industrial automation setups.
Get MAXIM MAX132CNG today—built for high-precision, fast data conversion with low noise and low power consumption in industrial systems.
