MAXIM INTEGRATED / ANALOG DEVICES MAX1480CCPI RS-485/RS-422 Isolated Interface
The MAX1480CCPI+ is a comprehensive electrically isolated RS485/RS422 data interface in a 28-pin DIP package. It provides a complete solution for isolated serial communication, powered by a single +5V supply for both sides of the interface. The device features a reduced slew rate driver to minimize EMI and reflections caused by improperly terminated cables, enabling error-free data transmission at speeds up to 250 kbps. It includes short circuit current limiting and thermal shutdown protection to prevent damage. The receiver has a fail-safe feature that outputs a low signal when the input is open. Suitable applications include industrial control networks, automated testing equipment, HVAC and building automation, and EMI-sensitive data communication. Operating with a supply voltage range of 4.5V to 5.5V and an operating temperature from 0°C to 70°C, it supports half duplex communication. Other features include a low shutdown current of 0.2 μA, configurable switching frequencies (535 kHz or 725 kHz), and the ability to withstand up to 1600 Vrms for 1 minute or 2000 Vrms for 1 second. The driver enable time is approximately 0.5 μs, making it suitable for various industrial and networking applications.
MAXIM INTEGRATED / ANALOG DEVICES MAX1480CCPI RS-485/RS-422 Isolated Interface Specifications:
- Supply Voltage: 4.5V to 5.5V
- Operating Temperature: 0°C to 70°C
- Data Rate: Up to 250kbps
- Isolation Voltage: withstands 1600 Vrms for 1 minute, 2000 Vrms for 1 second
- Driver Frequency: configurable at 535kHz or 725kHz
- Slew Rate: reduced for EMI minimization
- Current Limiting: short-circuit protection
- Thermal Shutdown: yes
- Fail-Safe Receiver: outputs low when input is open
- Communication Mode: half duplex
- Power Consumption: low shutdown current of 0.2 μA
- Package: 28-pin DIP

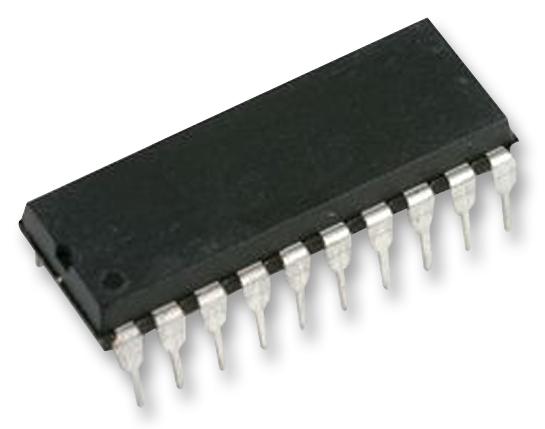

Buy the Buy MAXIM MAX1480CCPI+ Complete Isolated RS-485/RS-422 Data Interface Online
