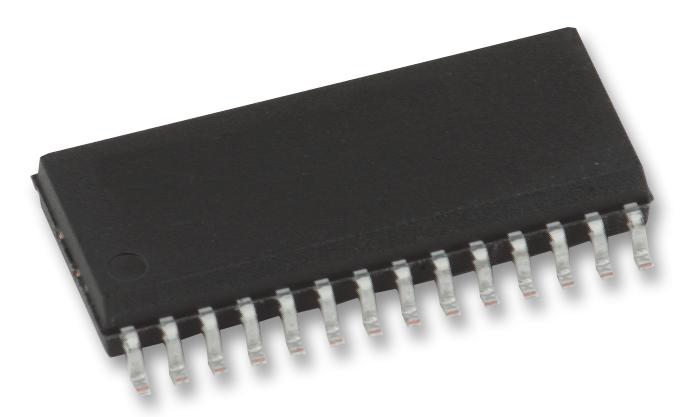

MAXIM INTEGRATED / ANALOG DEVICES DG406EWI CMOS Multiplexer
The DG406EWI+ is a 16-channel CMOS analog multiplexer in a 28-pin WSOIC package. It features low on-resistance (maximum 100 ohms), flatness across the signal range, low charge injection (maximum 15 pC), and excellent matching between channels (up to 8 ohms). The device operates with a single supply of +5V to +30V or dual supplies of ±4.5V to ±20V, and handles rail-to-rail signals. It exhibits low input off-leakage current (less than 5 nA at 85°C), consumes a maximum of 1.25 mW power, and provides ESD protection over 2000V. Suitable for applications like sample and hold circuits, guidance, control systems, data acquisition, and audio signal routing. Its digital controls are TTL/CMOS compatible, and it covers a temperature range of -40°C to 85°C.
MAXIM INTEGRATED / ANALOG DEVICES DG406EWI CMOS Multiplexer Specifications:
- Channels: 16
- Package: 28-pin WSOIC
- On-Resistance: Max 100 Ω
- Charge Injection: Max 15 pC
- Channel Matching: Up to 8 Ω
- Input Leakage at 85°C: Less than 5 nA
- Supply Voltage: +5V to +30V single, ±4.5V to ±20V dual
- Signal Range: Rail-to-rail handling
- Power Consumption: Max 1.25 mW
- ESD Protection: >2000V
- Operating Temperature Range: -40°C to 85°C
Buy the Maxim DG406EWI+ – Reliable CMOS Multichannel Signal Switch for Industrial Applications
Purchase the Maxim DG406EWI+ online today—this high-performance 16-channel CMOS analog multiplexer is designed for reliable operation in data acquisition, audio signal routing, and guidance systems. Featuring low on-resistance, excellent channel matching, and low charge injection, it ensures signal integrity and efficiency. Compatible with a broad supply range of +5V to +30V or dual voltages, it offers robust ESD protection and low power consumption. Perfect for engineers and technicians requiring dependable multiplexer solutions in industrial, automation, and instrumentation projects.
Get Maxim DG406EWI+ today—built for precision and long-lasting durability in signal switching applications.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES DG406EWI?
You can click on the BUY or RFQ button to purchase DG406EWI from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part DG406EWI?
You can download the DG406EWI datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of DG406EWI?
MAXIM INTEGRATED / ANALOG DEVICES
