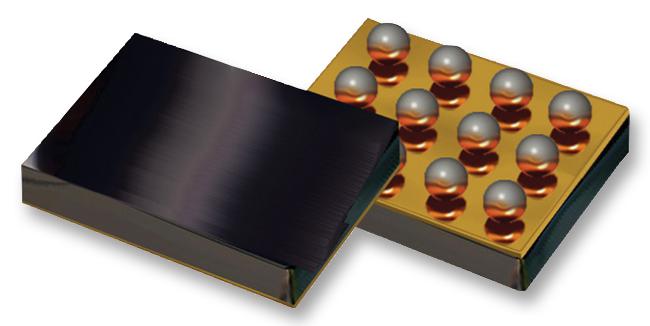

MAXIM INTEGRATED / ANALOG DEVICES MAX4233ABCT Dual CMOS Operational Amplifier
The MAX4233ABC+T is a high-output drive, rail-to-rail dual CMOS op amp with shutdown mode, suitable for RF PAs and audio applications. It features a 10V/μs slew rate, 10MHz gain bandwidth, and can drive loads up to 32 ohms while maintaining high linearity. Operating from 2.7V to 5.5V or ±1.35V to ±2.5V, it offers 200mA peak output current, low power consumption in shutdown mode, and stability with capacitive loads up to 780pF. Its low input offset voltage, high PSRR, and rail-to-rail input/output make it ideal for portable wireless headsets, digital converters, and high-bandwidth systems. Designed for industrial and consumer electronics, it provides reliable, high-performance amplification.
MAXIM INTEGRATED / ANALOG DEVICES MAX4233ABCT Dual CMOS Operational Amplifier Specifications:
- Supply Voltage: 2.7V to 5.5V or ±1.35V to ±2.5V
- Output Drive Capability: 200mA peak current
- Gain-Bandwidth Product: 10MHz
- Slew Rate: 10V/μs
- Input Offset Voltage: 0.85mV
- Input Bias Current: 50pA at 25°C
- Voltage Gain: 100dB (RL=100kΩ)
- Power Supply Rejection Ratio: 85dB
- Common-Mode Rejection Ratio: 70dB
- Output Voltage Swing: within 500mV of rails
- Capacitive Load Stability: up to 780pF
- Shutdown Mode Current: <1μA
- Operating Temperature Range: -40°C to +125°C
Buy the Maxim MAX4233ABCT – Reliable Dual CMOS Rail-to-Rail Op Amps for Industrial Applications
Purchase the Maxim MAX4233ABCT online today—engineered for high-current drive and stability in RF bias, audio, and high-speed signal processing. Its rail-to-rail input/output stages allow for versatile single or dual supply operation from 2.7V to 5.5V, making it ideal for portable and industrial applications. The device offers a high slew rate of 10V/μs, a gain bandwidth of 10MHz, and a peak output current of 200mA, ensuring accurate and reliable performance. Its low power shutdown mode reduces supply current to below 1μA, extending battery life and enhancing system efficiency. Compact and robust, it supports capacitive loads up to 780pF and maintains high linearity, making it an excellent choice for RF PAs, audio headsets, digital converters, and high-bandwidth systems requiring precise, high-current amplification with reliable shutdown control.
Get Maxim MAX4233ABCT today—built for high-performance RF biasing, portable audio, and high-bandwidth systems with reliable shutdown capability.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX4233ABCT?
You can click on the BUY or RFQ button to purchase MAX4233ABCT from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX4233ABCT?
You can download the MAX4233ABCT datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX4233ABCT?
MAXIM INTEGRATED / ANALOG DEVICES
