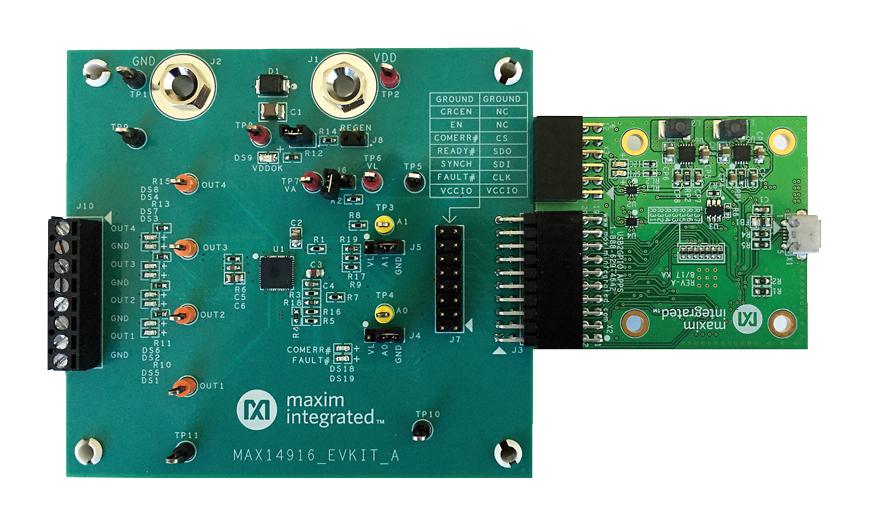

MAXIM INTEGRATED / ANALOG DEVICES MAX14916EVKIT High-Side Switch Evaluation Kit
The MAX14916 evaluation kit offers a comprehensive platform to evaluate the MAX14916 quad high-side switch with diagnostics. The kit includes a MAX14916AE+ in a 48-pin FC2QFN package, a GUI for control and diagnostics via USB, and supports high current, wide voltage range, and thermal management features. It allows individual switch control, fault indication, and diagnostics, suitable for industrial automation. Powering from +24V, it can handle loads exceeding 10A. Fully assembled and tested, it provides robust functionality for engineers testing high-side switching applications.
MAXIM INTEGRATED / ANALOG DEVICES MAX14916EVKIT High-Side Switch Evaluation Kit Specifications:
- Package Type: 48-pin FC2QFN
- Supply Voltage: +24V
- Supported Load Current: up to 10A per channel
- Temperature Range: -40°C to +125°C
- Diagnostics: Open-wire, overload, undervoltage, overcurrent, thermal shutdown
- Features: Fast inductive load demagnetization, wide input voltage range, drive outputs via GUI
- Communication: SPI interface, pin addressable
- Supply for USB2GPIO: Powered from USB port
- Power Consumption: can exceed 10A when fully loaded
- Operating Environment: Industrial/Automation
- GUI Compatibility: Windows 10
- Configuration: Fully assembled, tested, with diagnostic LED indicators
Buy the Buy Maxim MAX14916 Evaluation Kit Part Number MAX14916EVKIT Online
Experience the MAX14916 evaluation kit online today—designed for industrial automation and high-current applications. With comprehensive diagnostics, GUI control, and robust performance, this ready-to-use kit simplifies testing high-side switches with extended features. Power it from +24V, handle loads over 10A, and utilize its wide temperature range for demanding environments. The kit's proven PCB design and easy interface make it a top choice for engineers evaluating high-current switching solutions efficiently and reliably.
Buy Maxim MAX14916 evaluation kit now and enjoy reliable high-side switching, extensive diagnostics, and industrial-grade performance.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX14916EVKIT?
You can click on the BUY or RFQ button to purchase MAX14916EVKIT from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX14916EVKIT?
You can download the MAX14916EVKIT datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX14916EVKIT?
MAXIM INTEGRATED / ANALOG DEVICES
