MAXIM INTEGRATED / ANALOG DEVICES ICL7129ACPL2 High-Resolution Digital Multimeter Module
The ICL7129ACPL+2 is a low-noise, 4.5-digit monolithic ADC with integrated multiplexed LCD driver, ideal for high-precision digital voltmeters and panel meters. It features a 19,999 count resolution on voltage ranges of 2.00000V and 200.00mV, employing a successful successive integration method that ensures high linearity and true ratiometric operation. The device supports auto polarity detection, overrange/underrange outputs, and a 10:1 autoranging input. It includes low battery and continuity detection with visual and logical indicators. Operable from 6V to 14V within 0°C to 70°C, it eliminates the need for external compensation components, offers low noise of 3µV peak-to-peak, and provides 10µV resolution, making it suitable for precision measurement applications.
MAXIM INTEGRATED / ANALOG DEVICES ICL7129ACPL2 High-Resolution Digital Multimeter Module Specifications:
- Resolution: 19,999 counts on voltage ranges of 2.00000V and 200.00mV
- Resolution: 10µV, Noise: 3µV peak-to-peak
- Input impedance: High impedance differential inputs
- Power Supply: 6V to 14V, Operating temperature: 0°C to 70°C
- Eliminates external compensation components, Supports auto polarity detection
- Overrange and underrange outputs, 10:1 autorange input
- Display: Multiplexed LCD with 4.5 digits, 4 decimal points, 3 annunciators
- Low battery indicator, Continuity detection with visual and logical outputs

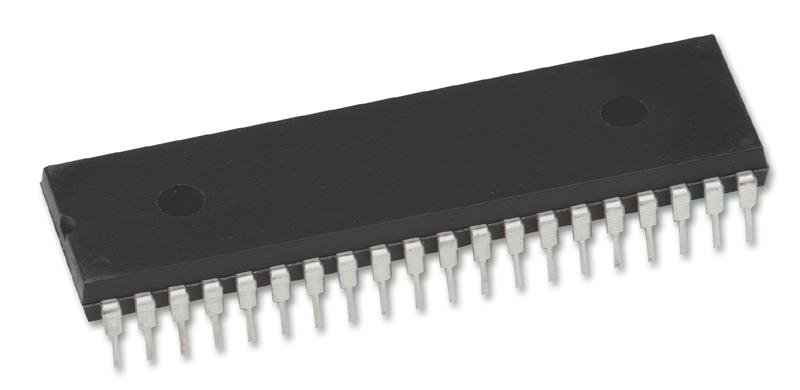

- Package: 40-pin DIP (ICL7129ACPL+2), suitable for precision measurement devices
Buy the Maxim Series 4-1/2 Digit ADC: ICL7129ACPL2
Purchase the Maxim Series ICL7129ACPL2 today for your precision measurement needs. This advanced 4.5-digit ADC offers excellent linearity, low noise at 3µV peak-to-peak, and integrated LCD driving capability. Its ability to operate from 6V to 14V simplifies power options, making it ideal for handheld and instrumentation applications. With features like auto polarity detection, overrange/underrange outputs, and low power consumption, it ensures accurate voltage readings. Order now online for quick delivery and elevate your electronic measurement systems with dependable, high-precision performance.
Order your Maxim Series ICL7129ACPL2 high-precision ADC with integrated LCD driver today and enhance your measurement projects with reliable accuracy.
