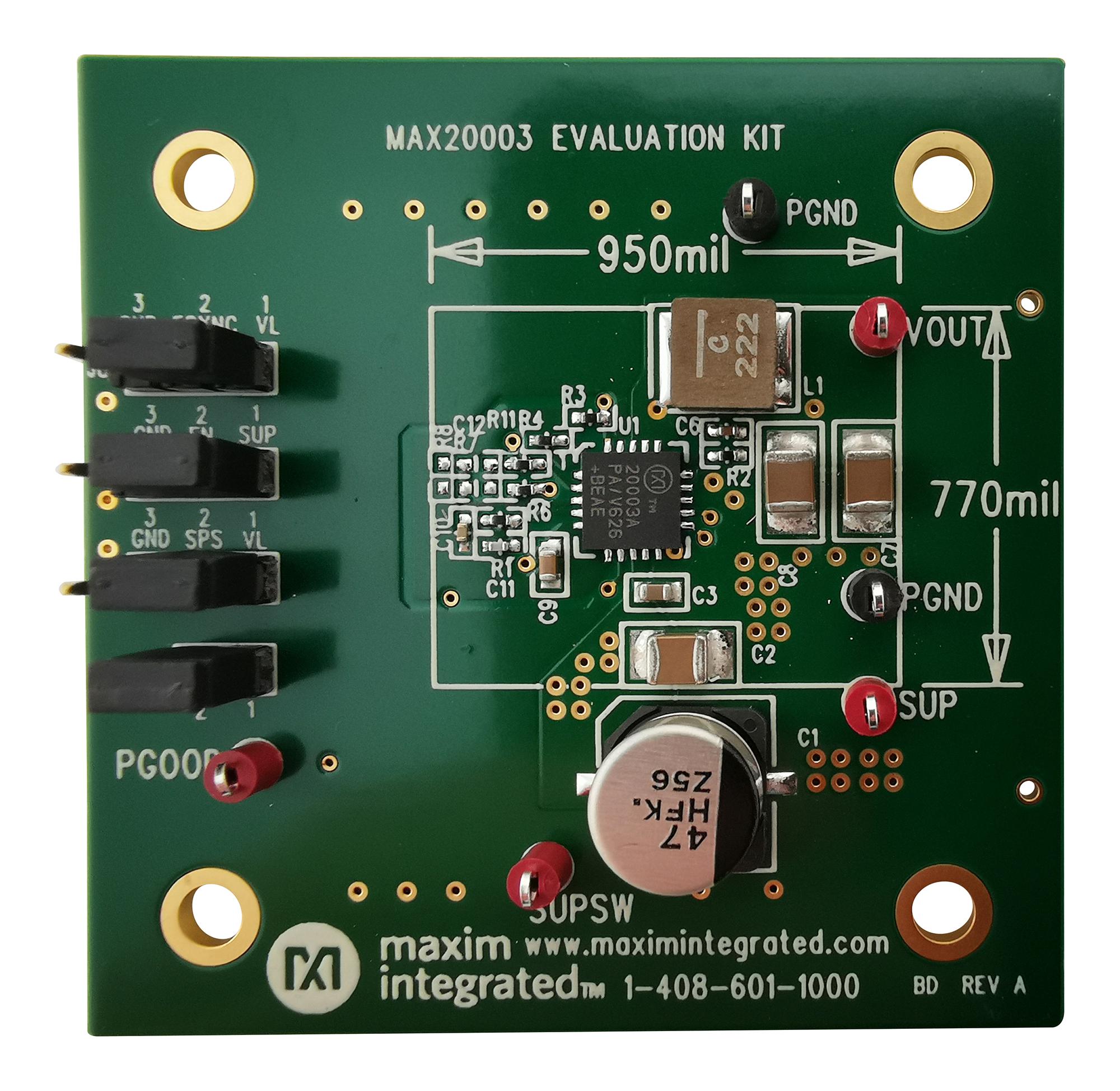

MAXIM INTEGRATED / ANALOG DEVICES MAX20003EVKIT High-Voltage Buck Converter
The MAX20003 evaluation kit demonstrates a high-voltage, low-operating current step-down converter capable of operating from 3.5V to 36V input and providing 5V at 3A output. Fully assembled and tested, it features options for forced-PWM or skip-mode operation, programmable switching frequency, power-good output, and spread spectrum enabling. Ideal for power management and industrial applications, this kit includes the MAX20003ATPA/V+ device, various configurable jumpers, and supports external synchronization, making it suitable for efficient and flexible voltage regulation systems.
MAXIM INTEGRATED / ANALOG DEVICES MAX20003EVKIT High-Voltage Buck Converter Specifications:
- Input voltage range: 3.5V to 36V
- Output voltage: Fixed 5V (adjustable via resistive divider)
- Maximum output current: 3A
- Switching frequency: Set by resistor, options for 400kHz and additional configurations
- Features: Forced-PWM mode, skip-mode operation, programmable frequency, power-good indicator
- Enable (EN): Controlled via jumper JU1 for normal or shutdown mode
- Spread spectrum: Enabled/disabled via jumper JU3, varies frequency by ±3%
- Synchronization: External clock input optional via FSYNC jumper
- Components: Includes inductors, capacitors, resistors as per typical configurations
- Protection: Integrated power-good indicator and configurable soft-start
- PCB: Fully assembled, tested, with dedicated test points and clear layout
Buy the Maxim MAX20003EVKIT – Reliable High-Voltage Step-Down Converter for Industrial Applications
Purchase the Maxim MAX20003 evaluation kit online now to access a proven, fully assembled high-voltage step-down converter solution suitable for industrial applications. The kit offers adjustable output, programmable switching frequency, and optional spread spectrum to optimize efficiency and electromagnetic compatibility. With easy setup, comprehensive features, and tested performance, this kit enables engineers to validate power conversion designs rapidly. Improve your projects' reliability and efficiency by ordering this versatile power management tool from trusted suppliers today.
Order your Maxim MAX20003EVKIT high-voltage buck converter evaluation kit today and enhance your industrial power management solutions with dependable performance and flexible configurations.
