MAXIM INTEGRATED / ANALOG DEVICES MAX15462AEVKIT Step-Down Converter

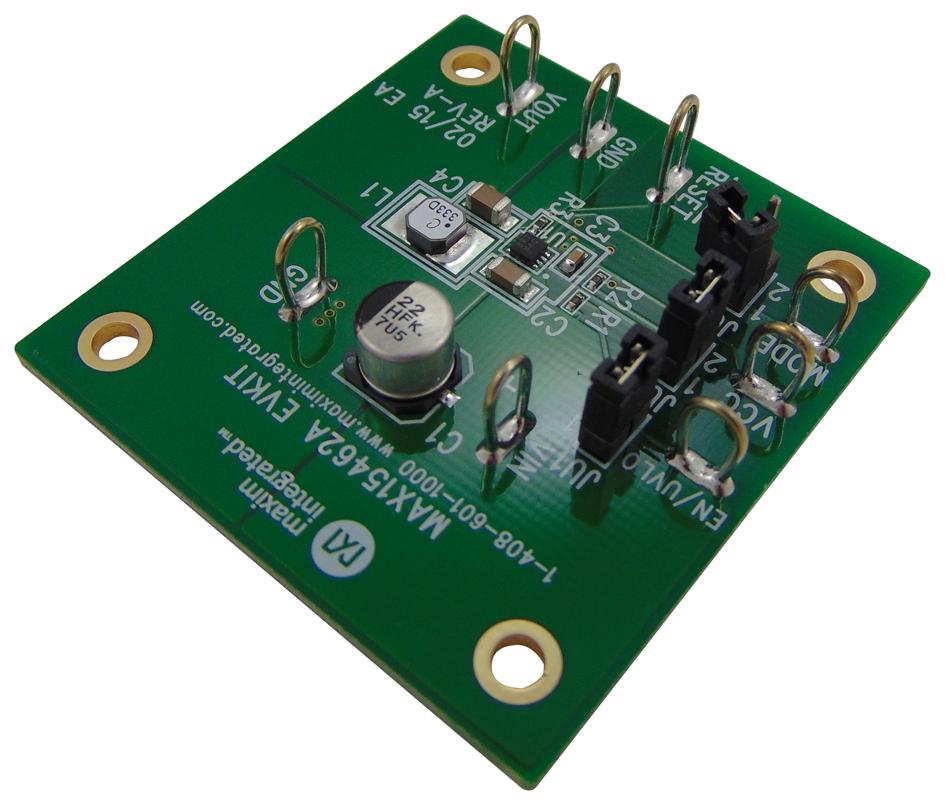

The MAX15462A evaluation kit is a compact, fully assembled circuit board demonstrating a high-efficiency, synchronous step-down converter capable of operating from 4.5V to 42V input. It provides a regulated 3.3V output at up to 300mA, featuring undervoltage lockout, overcurrent protection, thermal shutdown, and switching at 500kHz. The kit includes control jumpers for enable and mode selection, an open-drain reset indicator, and is ideal for testing, prototyping, and integrating efficient power solutions in industrial, automation, and electronics applications.
MAXIM INTEGRATED / ANALOG DEVICES MAX15462AEVKIT Step-Down Converter Specifications:
- Input Voltage Range: 4.5V to 42V
- Output Voltage: 3.3V
- Maximum Output Current: 300mA
- Switching Frequency: 500kHz
- Efficiency: Up to 90%
- Protection Features: Undervoltage lockout, overcurrent protection, thermal shutdown
- Control: Enable/UVLO with jumpers, mode selection via jumper JU3
- Reset Output: Open-drain, active high when Vout exceeds 95%, low below 92%
- Package: 8-pin TDFN (2mm x 2mm)
- Operating Temperature: Not specified in user-provided data
- Board includes components such as inductor, capacitors, resistors, headers, and jumpers for flexible operation
Buy the Maxim MAX15462A – Reliable High-Efficiency Step-Down Converter for Industrial Applications
Order the Maxim MAX15462A evaluation kit today to access a ready-to-use, high-efficiency power conversion solution. This compact, fully tested circuit accelerates your design process with adjustable protection features, mode control, and a wide input voltage range. Ideal for industrial, automation, and embedded system applications, the kit ensures reliable performance and easy integration. Whether prototyping or testing, maximize efficiency in your power management with this high-quality, dependable solution available online. Purchase now to streamline your development process and achieve optimal power performance.
Get Maxim MAX15462A today—built for precision, efficiency, and robust protection features in power management solutions.
