MAXIM INTEGRATED / ANALOG DEVICES MAX1595EUA50 Charge Pump Regulator
The MAX1595 charge pump is a compact, high-efficiency voltage regulator capable of generating 3.3V or 5V from input voltages between 1.8V and 5.5V. It requires only three external ceramic capacitors and no inductors, making it ideal for space-constrained applications like white LED backlighting, mobile devices, and battery-powered systems. The device supports up to 125mA output current with a switching frequency of 1MHz, featuring a shutdown mode drawing only 0.1μA and an undervoltage lockout to ensure reliability. Designed for seamless step-up or step-down regulation, it offers smooth transitions and excellent efficiency.
MAXIM INTEGRATED / ANALOG DEVICES MAX1595EUA50 Charge Pump Regulator Specifications:
- Input Voltage Range: 1.8V to 5.5V
- Output Voltage: 3.3V or 5V (fixed)
- Maximum Output Current: 125mA
- Switching Frequency: 1MHz
- External Capacitors: Three ceramic capacitors required (Cx, Cin, Cout)
- Ripple Voltage: Approximately 70mV with 1μF Cout and 0.22μF Cx
- Shutdown Current: 0.1μA
- Undervoltage Lockout Threshold: 1.6V
- Operating Temperature Range: -40°C to +85°C
- Package Options: 8-pin UMAX, 12-pin TQFN
- Thermal Resistance: 41°C/W (8 UMAX package)

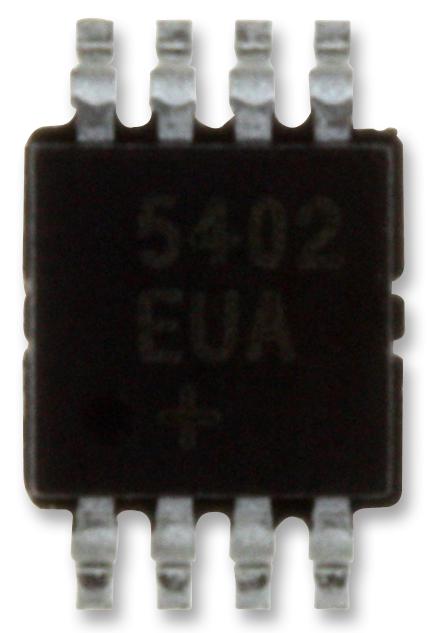

Buy the Buy MAXIM MAX1595EUA50 Part Number 1595EUA50 Online
Order the MAX1595EUA50 online for a reliable, high-efficiency regulated voltage source. Perfect for compact applications like LED lighting, smartphones, and portable electronics. Its simple design requires only three external ceramic capacitors, saving space and cost. With a maximum output current of 125mA and a switching frequency of 1MHz, it provides stable 3.3V or 5V outputs, ideal for battery-powered systems. Its low quiescent current and shutdown mode ensure power savings in mobile and miniaturized devices.
Get MAXIM MAX1595EUA50 today—built for high efficiency, compact size, and reliable power regulation in portable devices and LED backlighting.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX1595EUA50?
You can click on the BUY or RFQ button to purchase MAX1595EUA50 from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX1595EUA50?
You can download the MAX1595EUA50 datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX1595EUA50?
MAXIM INTEGRATED / ANALOG DEVICES
