MAXIM INTEGRATED / ANALOG DEVICES MAX31785ETL Fan Controller
The MAX31785 is a six-channel intelligent fan controller featuring automatic closed-loop control based on multiple temperature sensors. It supports PWM and RPM modes, includes fan diagnosis, and monitors voltage levels. Designed for network switches, servers, and industrial systems, it enables precise fan management, reduces noise, extends fan life, and enables remote fault and health monitoring. Its PMBus interface supports multiple configurations, fault logging, fan health diagnostics, and flexible fan control modes, making it ideal for energy-efficient thermal management in complex systems.
MAXIM INTEGRATED / ANALOG DEVICES MAX31785ETL Fan Controller Specifications:
- Supports 6 independent fans with PWM and RPM control
- Supports up to 11 temperature sensors including internal and external diodes
- Operates from 3.3V supply, ±10% tolerance
- Supports up to 6 remote voltages via ADC input
- Supports user-programmable lookup table for fan speed mapping
- Fan control via PMBus commands with fault and health diagnostics
- Supports automatic, manual, and hybrid fan control modes
- Operates in temperature range from -40°C to +85°C
- Supports dual tachometers, staggered spin-up, and fault warning thresholds
- Has nonvolatile fault and operation logs, and configurable fault response
- Supports configurable PWM frequency from 30Hz to 25kHz
- Includes diagnostic functions like fan health and spin-up failure detection

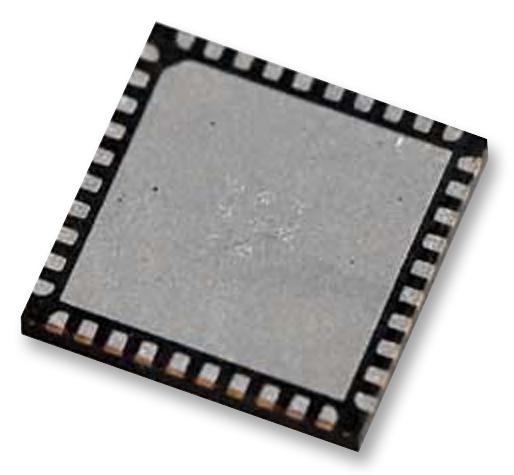

Buy the Buy MAXIM Integrated MAX31785ETL 6-Channel Fan Controller Part Number MAX31785ETL Online
Experience precise and energy-efficient thermal management with the MAXIM MAX31785ETL 6-Channel Fan Controller. This advanced device supports PWM and RPM control modes, incorporates multiple temperature sensors, and enables remote fault and health monitoring via PMBus. Ideal for servers, network switches, and industrial systems, it reduces noise, prolongs fan life, and ensures system reliability. Easy to integrate and configure, it offers fault logging, diagnostics, automatic control, and manual override options, providing comprehensive thermal management for complex electronic systems.
Get MAXIM Integrated MAX31785ETL today—designed for efficient, reliable fan management with fault detection and health diagnostics.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX31785ETL?
You can click on the BUY or RFQ button to purchase MAX31785ETL from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX31785ETL?
You can download the MAX31785ETL datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX31785ETL?
MAXIM INTEGRATED / ANALOG DEVICES
