MAXIM INTEGRATED / ANALOG DEVICES MAX16055CAUB Voltage Supervisor Module
The MAX16055 is a compact, hex voltage supervisor circuit designed for monitoring up to six system voltages, providing accurate reset signals to ensure system reliability in multisupply systems. It features factory-fixed threshold options for common voltages like 3.3V and 1.8V, as well as adjustable thresholds down to 0.5V, with high accuracy and immunity to transient glitches. The device offers a low-power open-drain reset output with a 140ms minimum timeout, suitable for industrial, networking, and telecommunication equipment, and operates reliably from -40°C to +125°C.
MAXIM INTEGRATED / ANALOG DEVICES MAX16055CAUB Voltage Supervisor Module Specifications:
- Operating Voltage Range: 1.0V to 5.5V
- Reset Timeout Period: 140ms (min)
- Reset Output: Active-low open-drain, weak internal pullup (70μA typical)
- Threshold Voltage Options: 0.9V, 1.0V, 1.1V, 1.2V, 1.5V, 1.8V, 2.5V, 3.0V, 3.3V
- Adjustable Thresholds: Down to 0.5V via external resistor divider
- Temperature Range: -40°C to +125°C
- Supply Input Pins: IN1 (power supply), IN2–IN6 (voltage monitoring)
- Package: 10-pin uMAX (3mm x 3mm)
- Reliability: Immune to short supply transients, internal hysteresis around 0.3%
- Manual reset input with internal pullup, external resistor recommended for noise immunity
- Low quiescent current with minimal external components required

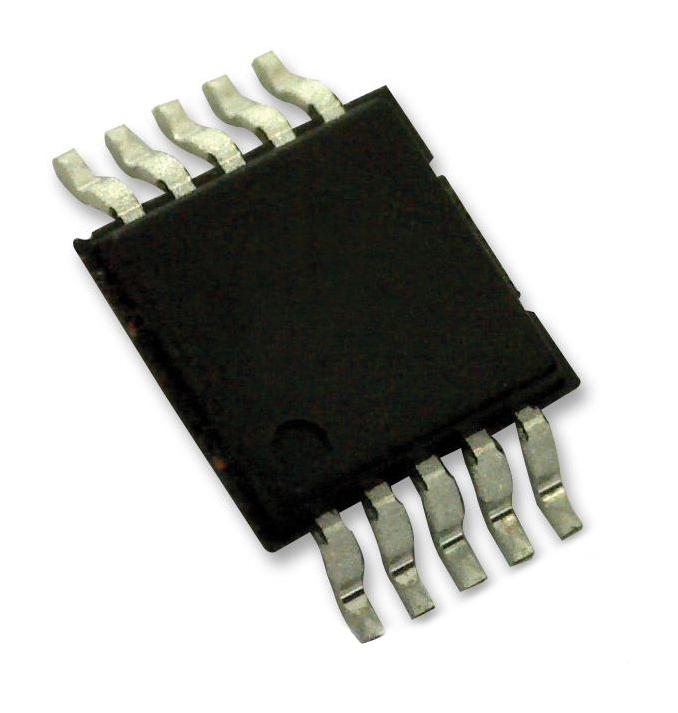

Buy the Buy Maxim MAX16055CAUB Ultra-Small Hex Voltage Supervisor Online
Order the Maxim MAX16055 voltage supervisor online and ensure your system's power integrity. This compact device offers factory-set and adjustable thresholds down to 0.5V, providing reliable reset signals for multiple voltage rails. It features a low-power open-drain reset output with a minimum 140ms timeout, immune to transient glitches, and operates over the -40°C to +125°C temperature range. Perfect for networking, industrial, and telecommunication equipment, this supervisor reduces system size and improves overall reliability. Purchase today for dependable power management protection.
Get Maxim MAX16055CAUB today—built for precision and long-lasting durability in multisupply system monitoring.
