MAXIM INTEGRATED / ANALOG DEVICES MAX16823ATE High-Voltage LED Driver
The MAX16823 is a high-voltage, three-channel LED driver operating from 5.5V to 40V, designed for high-brightness LEDs in automotive and industrial lighting. It features programmable output currents up to 100mA per channel, with ±5% current accuracy, and includes independent dimming inputs for dynamic brightness control. Equipped with open LED detection, a 3.4V regulator, short-circuit, thermal protections, and operates over -40°C to +125°C. Its compact 16-pin TQFN or TSSOP packages allow for minimal external components while ensuring reliable, high-performance LED driving in demanding environments.
MAXIM INTEGRATED / ANALOG DEVICES MAX16823ATE High-Voltage LED Driver Specifications:
- Operating Voltage Range: 5.5V to 40V
- Maximum Output Current per Channel: 100mA
- Output Current Accuracy: ±5%
- Voltage Regulator: 3.4V with 4mA capacity
- Thermal Shutdown Temperature: 155°C
- Operating Temperature Range: -40°C to +125°C
- Input Voltage Falling UVLO: 4.0V
- Dropout Voltage: 0.3V at 70mA
- Short-Circuit and Overtemperature Protection Included
- Sense Resistor Voltage: 203mV for current setting
- Package Options: 16-pin TQFN (5mm x 5mm) and TSSOP-EP
- Dimensions: Compact package suitable for automotive and industrial use

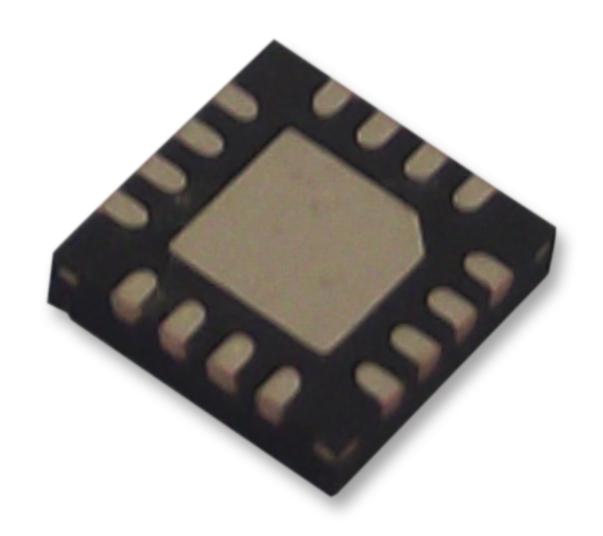

Buy the Buy Maxim Integrated MAX16823 Part Number 16823 Online
Discover the MAX16823 high-voltage, three-channel LED driver designed for demanding automotive and industrial lighting applications. It offers programmable currents up to 100mA per channel, accurate current regulation, and integrated protections such as open LED detection and thermal safeguards. The device covers input voltages from 5.5V to 40V and includes a 3.4V regulator with 4mA output, ensuring versatile and reliable LED control. Its compact package simplifies installation, making it an ideal choice for high-brightness LED systems requiring precision and durability.
Buy Maxim Integrated MAX16823 now and experience unmatched reliability and high-brightness LED driving performance in automotive and industrial lighting.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX16823ATE?
You can click on the BUY or RFQ button to purchase MAX16823ATE from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX16823ATE?
You can download the MAX16823ATE datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX16823ATE?
MAXIM INTEGRATED / ANALOG DEVICES
