MAXIM INTEGRATED / ANALOG DEVICES MAX274BENG Active Filter

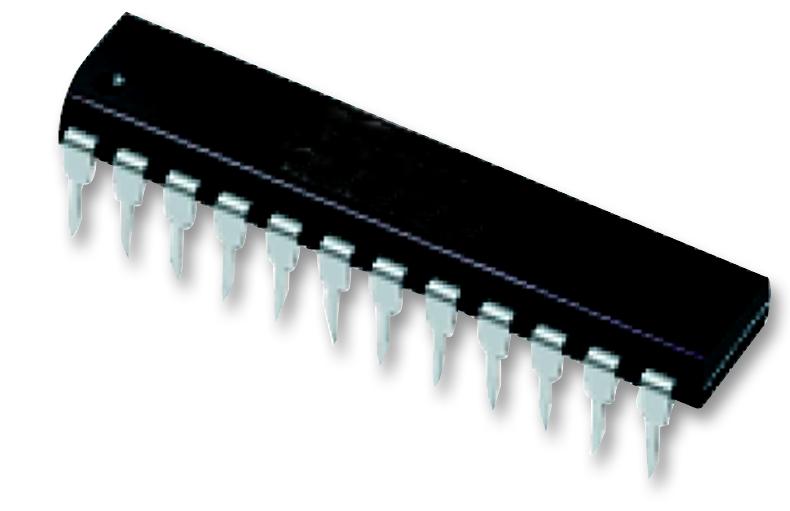

The MAX274BENG+ is an 8th order, continuous-time active filter housed in a 24-pin NDIP package. It consists of four 2nd-order sections that can be cascaded to realize complex filter responses. Each section is independently programmable to implement various all-pole filter responses such as Butterworth, Bessel, or Chebyshev, by adjusting four external resistors. This filter offers lower noise and superior dynamic performance compared to switched-capacitor filters, as it does not require a clock, thereby eliminating clock noise. Typical applications include audio, sonar, and avionics frequency filtering, DAC output smoothing, low-distortion anti-aliasing filters, modems, and vibration analysis. Key specifications include a supply voltage range of 2.37V to 5.5V, a temperature range from -40°C to 85°C, center frequencies up to 150 kHz with ±1% accuracy over temperature, a total harmonic distortion of approximately -86 dB, a supply current of 20 mA, and a slew rate of 10 V/µs.

View MAX274BENGDatasheet [pdf]

Buy the Maxim Series MAX274BENG: 8th-Order Continuous-Time Active Filter

Optimize your signal filtering with the Maxim MAX274BENG, an 8th-order, continuous-time active filter designed for high-precision, low-distortion applications. Featuring four cascadable 2nd-order sections, this filter provides flexible all-pole responses such as Butterworth, Bessel, and Chebyshev, by adjusting external resistors. It offers a wide operational voltage range of 2.37V to 5.5V, excellent frequency accuracy of ±1%, low noise, and a high slew rate of 10 V/µs. Perfect for audio, sonar, and avionics, it ensures superior dynamic performance and minimal clock noise—ideal for expert signal processing and demanding audio filtering tasks.

Get Maxim MAX274BENG today—built for precision, low noise, and high-frequency filtering in signal processing and audio applications.
