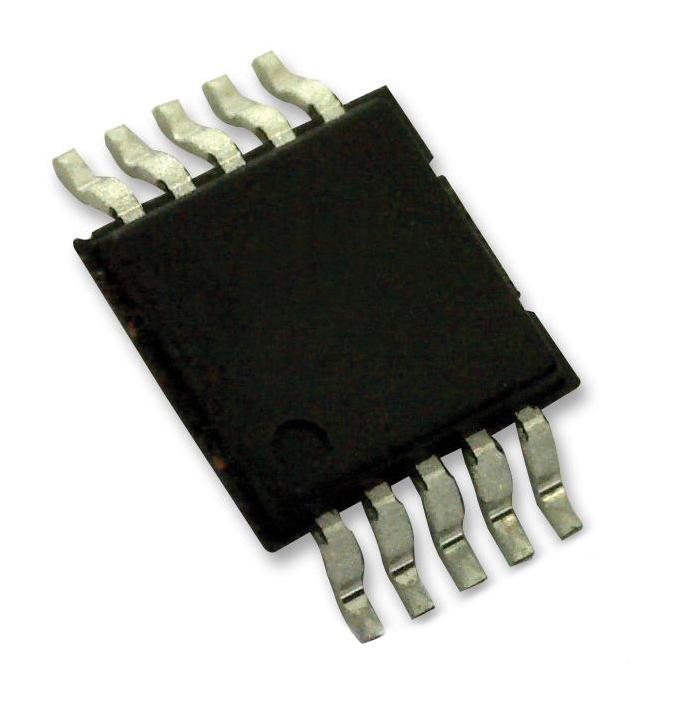

MAXIM INTEGRATED / ANALOG DEVICES MAX1693EUBT USB Power Switch
The MAX1693EUBT is a current-limited P-channel MOSFET switch designed for USB power applications. It features accurate current limiting from 0.7A to 1.0A, fault blanking for transient overloads, and thermal shutdown. Operating with input voltages from 2.7V to 5.5V, it provides guaranteed short-circuit protection and a fault indicator output. Its small 10-pin package makes it ideal for portable devices, hubs, and docking stations, ensuring reliable power management and device protection with built-in current and temperature safeguards.
MAXIM INTEGRATED / ANALOG DEVICES MAX1693EUBT USB Power Switch Specifications:
- Operating Voltage: 2.7V to 5.5V
- Current Limit: 0.7A to 1.0A
- Fault Blanking Timeout: 10ms
- Thermal Shutdown: Yes, at 165°C
- Switch Type: P-channel MOSFET
- Short-Circuit Protection: Guaranteed 0.75A, foldback current limiting
- On-Resistance: Max 125mΩ at VIN = 5.5V
- Input Capacitance: 1μF ceramic capacitor recommended
- Output Capacitor: 0.1μF
- Operating Temperature Range: -40°C to +85°C
- Package: 10-pin UMAX package
- Fault Indicator Output: Open-drain, goes low on faults
- Standby quiescent current: 14μA
- High side switch design, unidirectional, with active-low ON control
Buy the Maxim MAX1693EUBT – Reliable USB Power Switch for Industrial Applications
Enhance your portable device, hub, or docking station with the Maxim MAX1693EUBT USB power switch, which provides accurate current limiting, fault blanking, and thermal shutdown. Its compact 10-pin package and versatile operation from 2.7V to 5.5V make it ideal for space-constrained applications. Reliable short-circuit protection ensures device safety, while fault indicator output helps in system diagnostics. Perfect for USB ports, hot-swappable power supplies, and battery-charging circuits to ensure robust power delivery and device protection.
Buy Maxim MAX1693EUBT now and experience unmatched reliability and performance in USB power management with fault protection and current limiting features.
