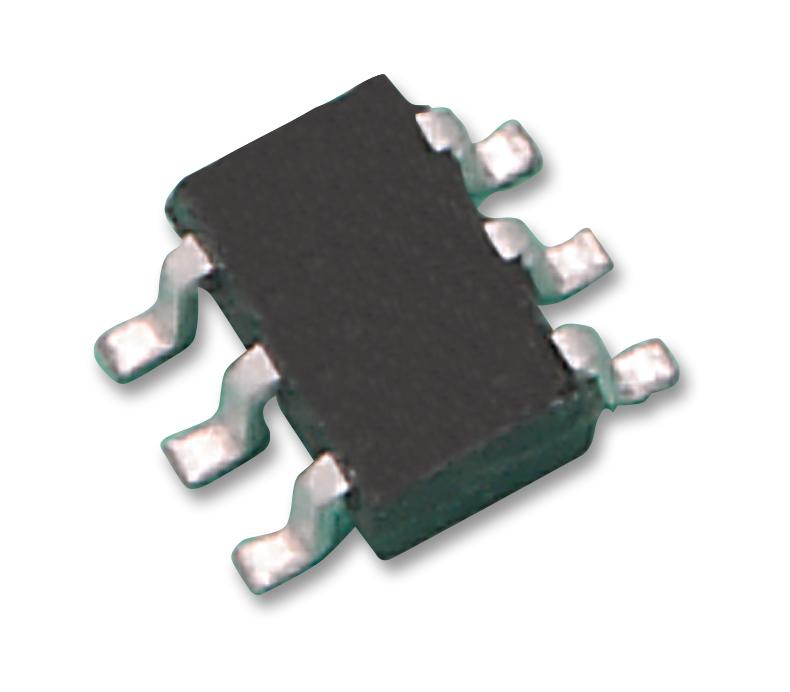

MAXIM INTEGRATED / ANALOG DEVICES MAX1719EUTT Voltage Inverter
The MAX1719EUT+T is a switched capacitor voltage inverter packaged in a 6-pin SOT-23 package. It is a monolithic CMOS charge pump device designed to generate a negative voltage from a positive supply, suitable for applications such as generating -5V from a +5V source to power analog circuitry. Operating with input voltages from 1.4V to 5.5V at 25°C and running at a frequency of 125kHz, it offers high efficiency (up to 99.9%) and requires only minimal external components—just two 1μF capacitors. The device features logic-controlled shutdown with a current of only 1nA, a maximum output current of 25mA, and a wake-up time of 80μs at 5mA load. It integrates oscillator control circuitry and four power MOSFET switches on-chip, making it ideal for battery-powered and board-level voltage conversion applications, including portable devices, LCD panels, and power management systems.
MAXIM INTEGRATED / ANALOG DEVICES MAX1719EUTT Voltage Inverter Specifications:
- Input Voltage Range: 1.4V to 5.5V
- Operating Temperature Range: -40°C to +85°C
- Frequency: 125kHz
- Maximum Output Current: 25mA
- Shutdown Current: 1nA
- Output Resistance: approximately 23Ω at room temperature
- Efficiency: up to 99.9%
- External Capacitors: 2 x 1μF, low ESR ceramic recommended
- Wake-up Time: approximately 80μs at 5mA load
- Package: 6-pin SOT-23
- Maximum Junction Temperature: +150°C
- Maximum Power Dissipation: derated 8.7mW/°C above 70°C
