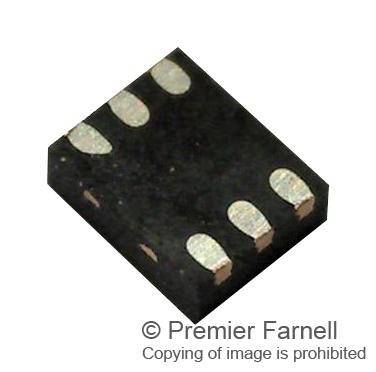

MAXIM INTEGRATED / ANALOG DEVICES MAX17220ELTT nanoPower boost converter
The MAX17220ELTT is a nanoPower synchronous boost converter with True Shutdown, designed for battery-powered wearables, medical equipment, IoT sensors, and backup systems. It operates from 400mV up to 5.5V input and provides an adjustable output voltage from 1.8V to 5V using a single 1% resistor. Features include ultra-low quiescent current, high efficiency, switching frequencies up to 2.5MHz, a tiny package, and multiple current limit options. The device disconnects its output during shutdown, extending battery life. Ideal for compact, low-power applications requiring reliable energy management and minimal quiescent current.
MAXIM INTEGRATED / ANALOG DEVICES MAX17220ELTT nanoPower boost converter Specifications:
- Input Voltage Range: 400mV to 5.5V
- Output Voltage Range: 1.8V to 5V
- Output Capacitor: Minimum 2uF, recommended 10uF X5R/X7R ceramic
- Switching Frequency: Up to 2.5MHz
- Quiescent Current (Active): Typically 0.5nA in shutdown
- Total System Shutdown Current: Typically 0.5nA with external pull-up resistor
- Peak Inductor Current Limit: 225mA (MAX17220), 500mA (MAX17222/23), 1A (MAX17224/25)
- Package Options: WLP (6 bump), uDFN (6 pin), RoHS compliant
- Startup Voltage: Minimum 0.95V, operational down to 0.4V input
- Efficiency: Up to 95%
- Operation Modes: Ultra-Low Power Mode, Low Power Mode, High Power Mode
- Output Power Dissipation: 357.8mW (WLP), 40mW (uDFN)
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature Range: -40°C to +150°C
- Reflow Soldering: 260°C
- Certifications: RoHS compliant
Buy the Maxim MAX17220ELTT – Reliable Boost Converter for Industrial Applications
Order the MAX17220ELTT today and experience its ultra-low quiescent current, high efficiency, and reliable output regulation. Designed for battery-powered wearable, medical, IoT, and backup systems, it efficiently operates from 400mV to 5.5V input. Its small package size and adjustable output voltage make it perfect for space-constrained applications. Enable energy savings and extend battery life with this precision device. Buy online now and enhance your low-power designs with ultra-efficient, reliable energy management. Perfect for compact, portable electronics requiring minimal power consumption.
Get Maxim MAX17220ELTT today—built for precision and long-lasting durability in low-power electronics and medical devices.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX17220ELTT?
You can click on the BUY or RFQ button to purchase MAX17220ELTT from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX17220ELTT?
You can download the MAX17220ELTT datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX17220ELTT?
MAXIM INTEGRATED / ANALOG DEVICES
