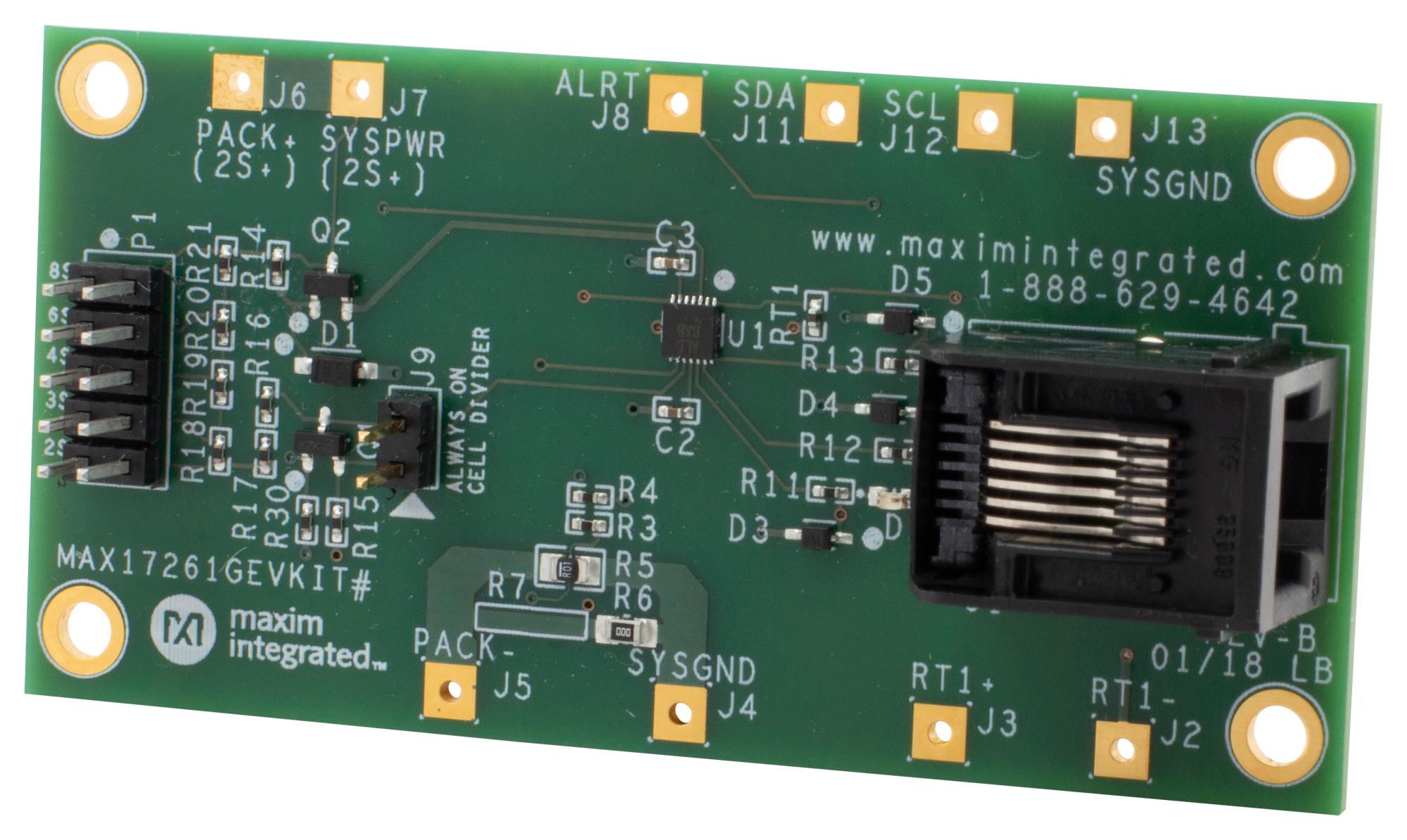

MAXIM INTEGRATED / ANALOG DEVICES MAX17261GEVKIT Battery Fuel Gauge Kit
This evaluation kit is designed to assess the MAX17261 standalone ModelGauge™ m5 host-side fuel-gauge ICs for lithium-ion (Li+) batteries. It supports applications such as tablets, 2-in-1 laptops, digital and video cameras, medical devices, handheld computers and terminals, financial terminals, mobile printers, augmented and virtual reality devices, robots, e-bikes, battery backups, and wireless speakers. The kit features the ModelGauge™ m5 algorithm, monitors from 2S+ cell packs, and supports a battery pack input voltage range of 4.6V to 39.2V. It includes a thermistor measurement network and an optional on-board PCB trace sense resistor. Compatible with Windows 7 or newer, the kit comes with proven PCB layout, fully assembled and tested for immediate use. Contents include an IC evaluation board, DS91230+ USB interface, and an RJ-11 connection cable.
MAXIM INTEGRATED / ANALOG DEVICES MAX17261GEVKIT Battery Fuel Gauge Kit Specifications:
- Supports lithium-ion batteries in applications like tablets, laptops, medical devices, and IoT devices.
- ModelGauge m5 algorithm for accurate State-of-Charge monitoring.
- Monitors from 2S+ cell packs with configurable cell count via jumper.
- Battery pack input voltage range: 4.6V to 39.2V.
- Includes thermistor measurement network, with option to replace with external thermistor.
- On-board PCB trace sense resistor, 0.0100Ω installed, with provisions for alternative resistor sizes.
- Compatibility: Windows 7 or newer, requires .NET Framework 4.5 or higher.
- Includes evaluation board, USB interface (DS91230+), and RJ-11 connection cable.
- Fully assembled and tested PCB layout, proven design for reliable performance.
- Supports software-controlled configuration, data logging, and register access.
Buy the Maxim MAX17261 – Reliable Fuel-Gauge for Industrial Applications
Order the Maxim MAX17261 fuel-gauge evaluation kit today to benefit from precise Li+ battery monitoring in your industrial or portable device projects. This fully assembled and tested PCB includes everything needed for quick setup, including a USB interface, reliable design, and compatible software for Windows 7 or newer. Whether developing new battery management systems or testing existing designs, this kit provides accurate data logging, configurable parameters, and intuitive control, making it an essential tool for engineers and technicians aiming for high reliability and performance in battery-powered applications.
Buy Maxim MAX17261 evaluation kit now and ensure precise battery management with robust, tested hardware and user-friendly software.
