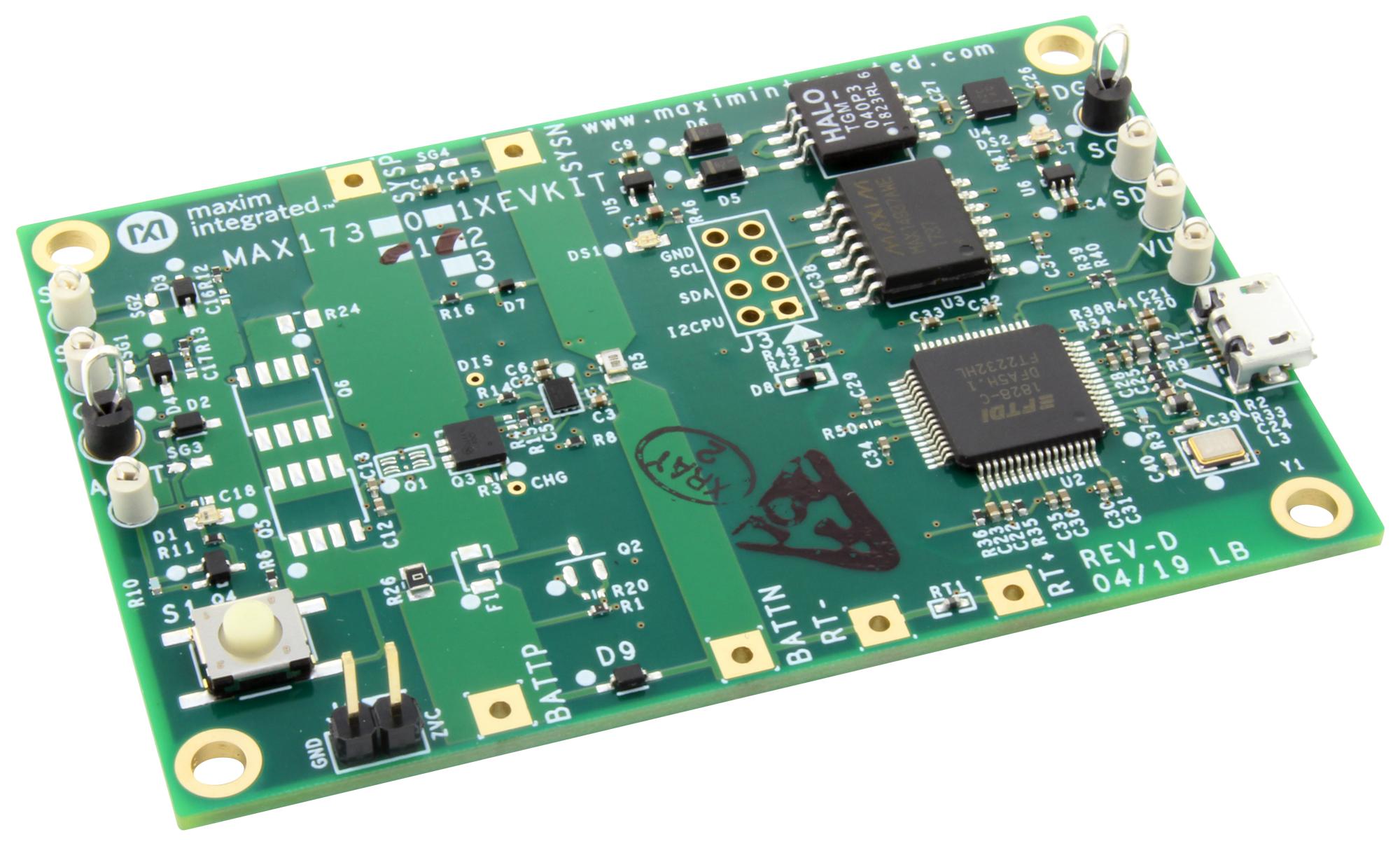

MAXIM INTEGRATED / ANALOG DEVICES MAX17312XEVKIT Fuel Gauge Module
This evaluation kit features the MAX17312 1-Cell ModelGauge™ m5 EZ fuel gauge with integrated protector and SHA-256 authentication. It includes the ModelGauge™ m5 algorithm for monitoring single-cell battery packs and provides a full protection solution on the board for evaluation purposes. The kit supports a battery input voltage range of 2.3V to 4.9V and a current range from -5A to +5A, up to 10A with a low-resistance sense resistor. It also includes a thermistor measurement network and an on-board 1-Wire communication interface. The evaluation board is fully assembled, tested, and compatible with Windows 7 or newer operating systems. The package includes the MAX17312 evaluation board and a USB micro-B cable.
MAXIM INTEGRATED / ANALOG DEVICES MAX17312XEVKIT Fuel Gauge Module Specifications:
- Device: MAX17312 ModelGauge m5 EZ fuel gauge
- Cell Count: 1-Cell
- Input Voltage Range: 2.3V to 4.9V
- Current Range: -5A to +5A, up to 10A with sense resistor less than 5mΩ
- Temperature Measurement: Thermistor network included
- Communication Interface: On-board 1-Wire
- Compatibility: Windows 7 or newer
- Board Type: Fully assembled and tested evaluation kit
- Package includes: evaluation board and USB micro-B cable
Buy the Maxim MAX17312XEVKIT – Reliable Fuel Gauge for Industrial Applications
Purchase the Maxim MAX17312 evaluation kit online for a reliable and accurate fuel gauge solution with integrated protector and SHA-256 authentication. This fully assembled and tested board supports single-cell lithium-ion batteries, offering high-precision measurement capabilities, including thermistor support and I-Wire communication. Compatible with Windows 7 and newer, it’s ideal for industrial applications, research, and development. The kit includes the evaluation board plus a USB micro-B cable, making it easy to set up and start evaluating the MAX17312 fuel gauge IC for your battery management needs.
Get Maxim MAX17312XEVKIT today—built for precision and long-lasting durability in battery management systems.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX17312XEVKIT?
You can click on the BUY or RFQ button to purchase MAX17312XEVKIT from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX17312XEVKIT?
You can download the MAX17312XEVKIT datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX17312XEVKIT?
MAXIM INTEGRATED / ANALOG DEVICES
