MAXIM INTEGRATED / ANALOG DEVICES MXL1535EEWI RS-485 Transceiver
The MXL1535EEWI is an isolated RS-485/RS-422 transceiver providing galvanic isolation of 2500V RMS. It supports full-duplex communication at up to 1000kbps, featuring high ESD protection, fail-safe circuitry, and hot-swap capability. Designed for industrial control, telecommunication systems, and large common-mode voltage environments, it operates with a supply voltage of +4.5V to +5.5V, with a secondary side operating at +4.5V to +7.5V. It includes differential drivers and receivers, ensuring reliable data transmission across isolation barriers, with built-in fault detection and thermal shutdown protections.
MAXIM INTEGRATED / ANALOG DEVICES MXL1535EEWI RS-485 Transceiver Specifications:
- Isolation Voltage: 2500V RMS
- Data Rate: Up to 1000kbps
- Supply Voltage: +4.5V to +5.5V (logic side), +4.5V to +7.5V (secondary side)
- Isolation Barrier: High-voltage capacitors + external transformer
- Enable/Disable: Driver and receiver with fault detection
- ESD Protection: +15kV Human Body Model
- Protection: Short-circuit, thermal shutdown, undervoltage lockout
- Package: 28-pin wide SOIC
- Operating Temp: -40°C to +85°C
- Supported for 256 devices on bus due to 1/8 unit load
- Includes fail-safe circuitry, hot-swap capability, and fault indicator

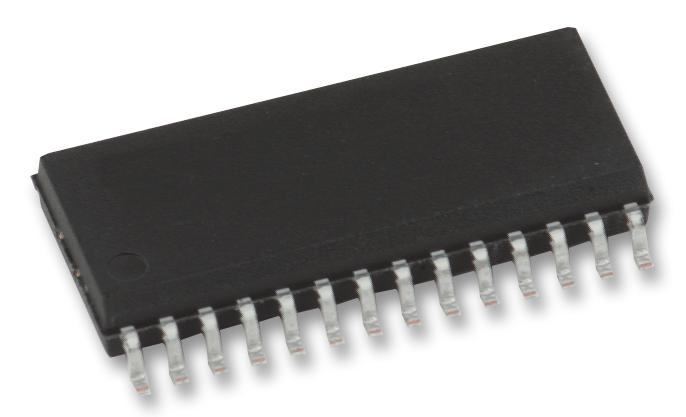

Buy the Maxim MXL1535EEWI – Reliable Isolated RS-485 Transceiver for Industrial Applications
Enhance your industrial communication network with the Maxim RS-485 transceiver. Supporting 1000kbps data rate and providing 2500V RMS galvanic isolation, it ensures reliable data transfer across challenging environments. Its high ESD protection, fail-safe features, and fault detection capabilities make it suitable for telecommunication systems and large control networks. Operable at +4.5V to +5.5V with thermal shutdown and short-circuit protection, it’s the perfect choice for durable, safe, and efficient industrial automation and control applications.
Buy Maxim MXL1535EEWI now and experience unmatched reliability and performance in industrial communication systems with galvanic isolation.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MXL1535EEWI?
You can click on the BUY or RFQ button to purchase MXL1535EEWI from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MXL1535EEWI?
You can download the MXL1535EEWI datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MXL1535EEWI?
MAXIM INTEGRATED / ANALOG DEVICES
