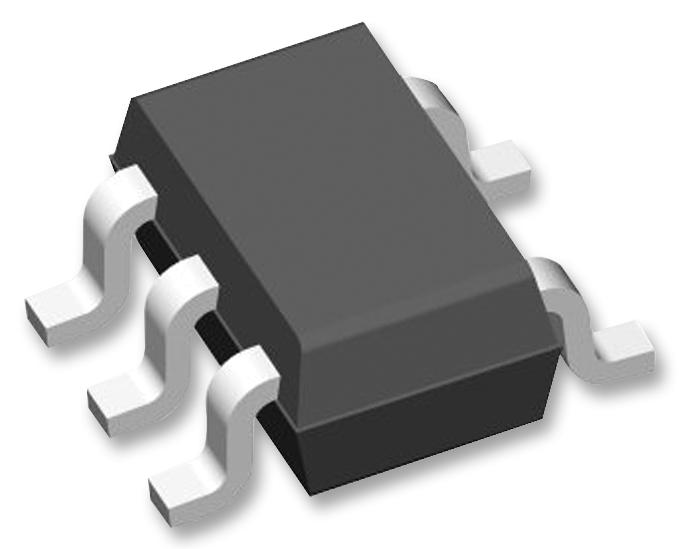

MAXIM INTEGRATED / ANALOG DEVICES MAX4073TAXKT High-Side Current-Sense Amplifier
The MAX4073TAXK+T is a low-cost, high-side current sense amplifier with a voltage output and a gain of 20 V/V, housed in a compact 5-pin SC-70 package. It features an input common-mode voltage range of +2V to +28V, independent of supply voltage, ideal for current monitoring in battery-powered systems and battery charger control loops. With a broad 1.8MHz bandwidth and adjustable full-scale current measurement via an external sense resistor, it offers high accuracy (±1% at 25°C), low power consumption, and excellent noise rejection, suited for power management, system monitoring, and PA bias control.
MAXIM INTEGRATED / ANALOG DEVICES MAX4073TAXKT High-Side Current-Sense Amplifier Specifications:
- Supply Voltage Range: 3V to 28V
- Input Common-Mode Range: +2V to +28V, independent of supply
- Gain Options: 20V/V, 50V/V, 100V/V
- Bandwidth: 1.8MHz
- Full-Scale Accuracy: ±1% at 25°C
- Operating Temperature: -40°C to 125°C
- Package: 5-pin SC70
- Power Consumption: 0.5mA
- Output Voltage Swing: Near ground with Vcc > full-scale voltage + 1.2V
- Differential Input Voltage: ±30V
- Leakage Current: 0.05µA
- Short-Circuit Output: Allowed to GND
- Designed for high-side current sensing in portable and battery systems.
Buy the Maxim Series MAX4073 High-Side Current-Sense Amplifier: MAX4073T
Purchase the Maxim MAX4073T high-side current-sense amplifier online today to optimize your battery-powered systems and power management solutions. This compact, low-cost device offers 20V/V gain, wide input voltage range from +2V to +28V, and superior accuracy of ±1% at room temperature. Its 1.8MHz bandwidth makes it ideal for fast-responsive current monitoring in a variety of applications such as battery chargers, system monitoring, and power regulation. Easily integrate this reliable component into your design to ensure accurate, high-efficiency current sensing with minimal power consumption.
Buy Maxim MAX4073T high-side current sensing amplifier now and experience unmatched reliability, precise current monitoring, and seamless integration into your battery management systems.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX4073TAXKT?
You can click on the BUY or RFQ button to purchase MAX4073TAXKT from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX4073TAXKT?
You can download the MAX4073TAXKT datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX4073TAXKT?
MAXIM INTEGRATED / ANALOG DEVICES
