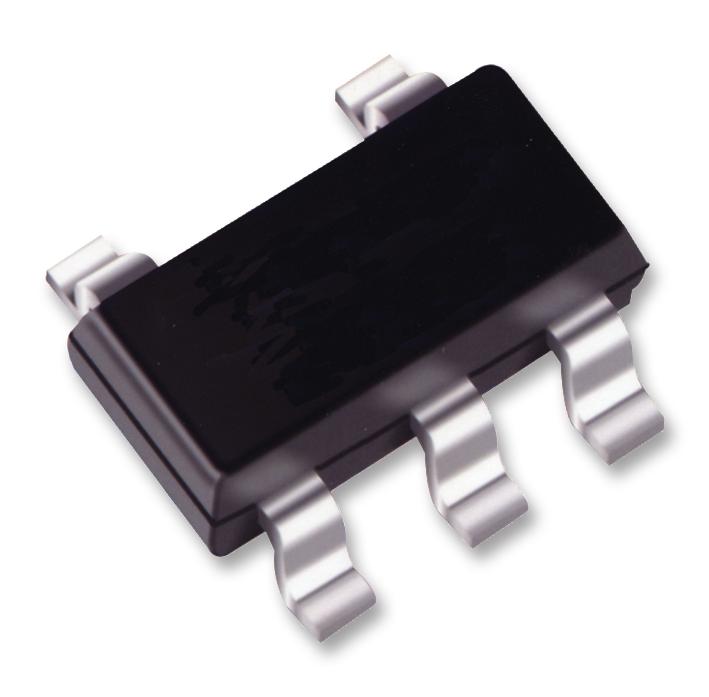

MAXIM INTEGRATED / ANALOG DEVICES MAX1735EUK25T Negative Linear Regulator
The MAX1735EUK25+T is a low dropout linear regulator capable of delivering 200mA with a negative output voltage in a 5-pin SOT-23 package. It operates from a input voltage range of -2.5V to -6.5V and provides a high-accuracy output voltage adjustable from -1.25V to -5.5V via an external resistor divider, or fixed at -2.5V in dual mode operation. The device features an internal N-channel MOSFET that offers a low quiescent current of approximately 85µA, making it highly suitable for battery-powered portable devices such as PDAs, mobile phones, cordless phones, and wireless data modems. Additional features include a low power shutdown mode (1nA), short circuit and thermal overload protection, and solid performance with a power supply rejection ratio of 60dB at 100Hz. Its stable operation is supported by a 1µF output capacitor, and it operates over a temperature range of -40°C to 85°C. Typical applications include power management in disk drives, modems, instrumentation, mobile and cordless telephones, PCMCIA cards, GaAsFET biasing, portable wireless data modems, PDAs, and palmtop computers.
MAXIM INTEGRATED / ANALOG DEVICES MAX1735EUK25T Negative Linear Regulator Specifications:
- Input Voltage Range: -2.5V to -6.5V
- Output Voltage: Adjustable from -1.25V to -5.5V or fixed at -2.5V
- Output Current: up to 200mA
- Dropout Voltage: 80mV at 200mA
- Quiescent Current: approximately 85µA
- Shutdown Mode Current: 1nA
- Package: 5-pin SOT-23
- Operating Temperature Range: -40°C to 85°C
- Supply Rejection Ratio: >60dB at 100Hz
- Output Capacitor: 1µF ceramic for stability
- Protection Features: Short circuit, thermal overload
- Additional Features: Low power shutdown, adjustable output via resistive divider
Buy the Maxim MAX1735U – Reliable Negative Low-Dropout Regulator for Industrial Applications
Enhance your electronic designs with the MAX1735 low dropout negative linear regulator. Offering 200mA output current, adjustable or fixed voltage options, and low quiescent current, it is perfect for battery-powered devices such as PDAs, mobile phones, and data modems. Its compact SOT-23 package allows easy integration into space-constrained environments. Featuring excellent noise performance, robust protection features, and a wide temperature range, this regulator ensures stable and efficient power delivery. Purchase online today to improve your device’s power management with proven reliability and optimal performance.
Buy Maxim MAX1735U now and experience unmatched reliability and performance in your portable power management designs.
