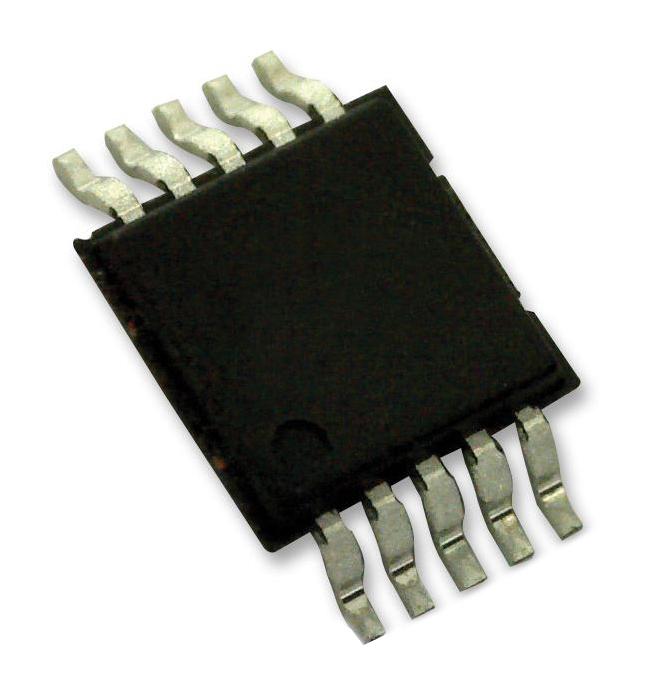

MAXIM INTEGRATED / ANALOG DEVICES MAX17530AUB High-Efficiency DC-DC Converter
The MAX17530 is a high-efficiency, ultra-small synchronous step-down DC-DC converter operating from 4V to 42V inputs. It delivers up to 25mA and provides adjustable output voltages from 0.8V to 0.9 times input voltage. Incorporating peak-current mode control and adjustable switching frequencies from 100kHz to 2.2MHz, it supports PWM and PFM modes, ensuring high efficiency and reliability across various environments. Features include internal compensation, built-in soft-start, thermal and overload protections, and low-no-load quiescent current of 22µA, making it ideal for industrial sensors, battery-powered devices, and high-voltage applications.
MAXIM INTEGRATED / ANALOG DEVICES MAX17530AUB High-Efficiency DC-DC Converter Specifications:
- Input Voltage Range: 4V to 42V
- Output Current: Up to 25mA
- Output Voltage: 0.8V to 0.9 x Vin
- Switching Frequency: 100kHz to 2.2MHz
- No-Load Supply Current: 22µA
- Thermal Shutdown: 160°C with 20°C hysteresis
- Peak Current Limit: 278mA
- On-Resistance High-Side pMOS: 59mΩ
- On-Resistance Low-Side nMOS: 16mΩ
- Temperature Range: -40°C to +125°C
- Package: TDFN-EP 10-pin (3mm x 3mm / 3mm x 2mm)
Buy the MAXIM MAX17530 Reliable Step-Down Converter for Industrial Applications
Get the MAX17530 high-current, high-voltage synchronous step-down DC-DC converter today online. Its compact size, adjustable frequency, and low quiescent current make it perfect for demanding industrial and battery-powered applications. Designed with integrated MOSFETs, soft-start, and multiple protection features, this device ensures reliable operation in harsh environments. Purchase online now to benefit from fast shipping, competitive pricing, and technical support, enabling you to implement efficient and robust power solutions easily in your designs.
Order your MAX17530 ultra-small, high-efficiency step-down converter today and ensure dependable power regulation for industrial, sensor, and control projects.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX17530AUB?
You can click on the BUY or RFQ button to purchase MAX17530AUB from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX17530AUB?
You can download the MAX17530AUB datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX17530AUB?
MAXIM INTEGRATED / ANALOG DEVICES
