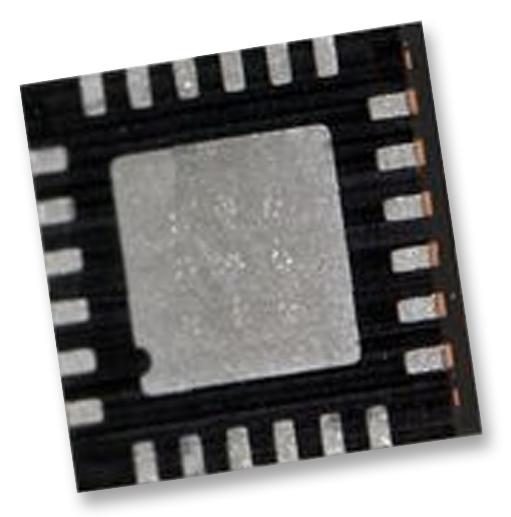

MAXIM INTEGRATED / ANALOG DEVICES MAX16043TG voltage supervision circuit
The MAX16043TG+ is a quad voltage, capacitor-adjustable sequencing and supervisory circuit housed in a 24-pin TQFN package. It features fixed and adjustable voltage thresholds, selectable via logic inputs, enabling precise monitoring of multiple power lines. The device provides sequence timing through small external capacitors with a fixed minimum delay of 140ms or externally adjustable delay times. It offers open-drain outputs supporting up to 28V, suitable for DC-DC regulator interfaces, and includes a reset function that deasserts after monitoring all voltages exceed thresholds. Operating from 2.2V to 28V over -40°C to 125°C, it supports fixed thresholds for 3.3V, 2.5V, 1.8V, 1.5V, and 1.2V systems and an adjustable threshold down to 0.5V with 1.5% accuracy, maintaining 2.7% over temperature. Nine logic threshold options, manual reset, tolerance select, and daisy-chain capability allow flexible designs for system monitoring, industrial automation, communication, and networking applications.
MAXIM INTEGRATED / ANALOG DEVICES MAX16043TG voltage supervision circuit Specifications:
- Package: 24-pin TQFN, 4mm x 4mm x 0.8mm
- Supply Voltage Range: 2.2V to 28V
- Operating Temp: -40°C to +125°C
- Voltage Thresholds: Fixed at 3.3V, 2.5V, 1.8V, 1.5V, 1.2V; Adjustable down to 0.5V with 1.5% accuracy
- Delay Timing: Fixed minimum 140ms or capacitor-adjustable
- Outputs: Four open-drain supporting up to 28V
- Reset Function: Deasserts after all monitored voltages exceed thresholds, with fixed or external reset timeout
- Threshold Tolerance: 5% or 10% selectable via TOL pin
- Temperature Stability: Fixed thresholds 2.7% across temperature
- Applications: Multivoltage systems, power supply sequencing, industrial automation, communication equipment
Buy the Maxim MAX16043TG – Reliable Voltage Supervisory for Industrial Applications
Purchase the Maxim MAX16043TG online today—designed for precise multi-voltage monitoring and sequencing in industrial systems. Its fixed and adjustable thresholds, supporting voltages up to 28V, ensure reliable power management across complex applications. Equipped with flexible delay timing and reset functions, this circuit enhances system stability and safety. Ideal for multivoltage systems, power supply sequencing, and communication equipment, the MAX16043TG offers robust performance with a small 24-pin TQFN package, operational from -40°C to 125°C. Secure yours now for dependable system supervision.
Get Maxim MAX16043TG today—optimized for multi-voltage supervision with flexible delay and temperature stability, ideal for industrial control systems.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX16043TG?
You can click on the BUY or RFQ button to purchase MAX16043TG from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX16043TG?
You can download the MAX16043TG datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX16043TG?
MAXIM INTEGRATED / ANALOG DEVICES
