MAXIM INTEGRATED / ANALOG DEVICES MAX17578ATC Inverting DC-DC Converter
The MAX17578 is a high-efficiency, high-voltage inverting synchronous DC-DC converter capable of delivering up to 1A output current from an input voltage range of 4.5V to 60V. It features integrated MOSFETs, internal compensation, and selectable switching frequencies from 400kHz to 2.2MHz via external resistors. The device operates in discontinuous conduction mode for light loads, providing superior efficiency, and includes adjustable soft-start, thermal shutdown, and overcurrent protection. Compact in a 12-pin TDFN package, ideal for industrial control, point-of-load, and motion control applications.
MAXIM INTEGRATED / ANALOG DEVICES MAX17578ATC Inverting DC-DC Converter Specifications:
- Input Voltage Range: 4.5V to 60V
- Output Voltage Range: -0.9V to -36V
- Maximum Load Current: 1A
- Switching Frequency: 400kHz to 2.2MHz (programmable via resistor, external sync possible)
- Operating Temperature Range: -40°C to +125°C

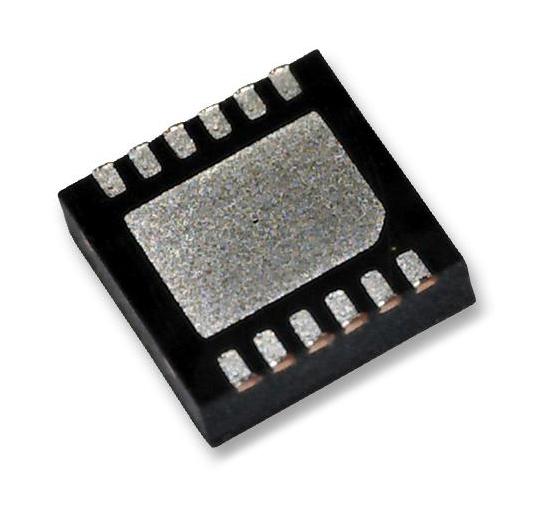

- Package: 12-pin TDFN-EP (3mm x 3mm)
- Efficiency: Up to 90.6%
- Thermal Shutdown Threshold: 165°C
- Hiccup-mode Overload Protection
- Soft-start: Adjustable via capacitor
- Internal MOSFETs: Yes, integrated high and low side
- Feedback Regulation Accuracy: ±1.3%
- Mounting: Surface-mount with exposed pad for heat dissipation
- Application: Industrial control, general-purpose point-of-load, motion control, gate drive circuits
Buy the Buy Analog Devices MAX17578 Part Number MAX17578ATC Online
Purchase the MAX17578 high-efficiency, inverting synchronous DC-DC converter online to ensure reliable power solutions. Perfect for industrial, control, and motion applications, it offers programmable frequency, soft-start, thermal protection, and integrated MOSFETs in a small TDFN package. Easy to integrate with external synchronization and protection features, this device delivers up to 1A output current across a wide input voltage range. Simplify your design and save space with our fast online ordering for top-tier power regulation components.
Buy Analog Devices MAX17578ATC now and experience unmatched reliability and high efficiency in your power supply designs.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX17578ATC?
You can click on the BUY or RFQ button to purchase MAX17578ATC from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX17578ATC?
You can download the MAX17578ATC datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX17578ATC?
MAXIM INTEGRATED / ANALOG DEVICES
