MAXIM INTEGRATED / ANALOG DEVICES MAX20029CATIAV Automotive Power Module
The MAX20029 family consists of automotive-grade, high-efficiency, low-voltage step-down DC-DC converters with four synchronized bucks operating from 3.0V to 5.5V. Programmable output voltages between 1.0V and 4.0V (adjustable models) support loads up to 1.5A per channel, with some configurations enabling up to 3A from combined channels. Features include fixed-frequency PWM at 2.2MHz, spread spectrum EMI reduction, external synchronization, soft-start, and extensive protection. The devices are designed for automotive and industrial applications, housed in a 28-pin TQFN package for optimal thermal and electrical performance over -40°C to +125°C temperature range.
MAXIM INTEGRATED / ANALOG DEVICES MAX20029CATIAV Automotive Power Module Specifications:
- Supply Voltage Range: 3.0V to 5.5V
- Output Voltage Range: 1.0V to 4.0V adjustable or fixed between 0.7V and 3.8V
- Load Current: Up to 1.5A per channel; some configurations support up to 3A
- Switching Frequency: 2.2MHz
- Operation Temperature: -40°C to +125°C

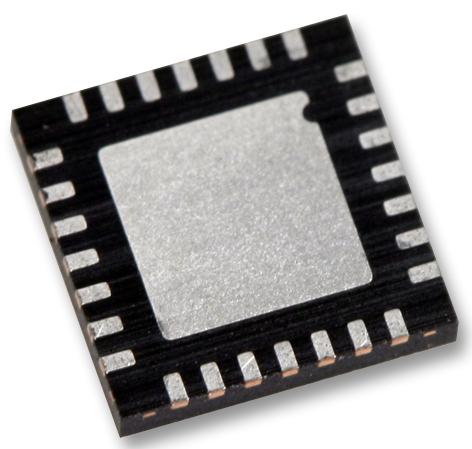

- Package: 28-pin TQFN with exposed pad
- Protection Features: Overvoltage, undervoltage lockout, overtemperature shutdown, short-circuit protection
- Control Mode: PWM with spread spectrum, external sync option
- Input Voltage: 3.0V to 5.5V
- Power-Good Indicators: Yes, for each channel
- Soft-start and sequencing: Support for inrush current reduction
- Applications: Automotive, industrial electronics
Buy the Maxim MAX20029CATIAV – Reliable Automotive Step-Down DC-DC Converters for Industrial Applications
Purchase the Maxim MAX20029CATIAV today for your automotive and industrial projects. This high-efficiency, four-channel step-down regulator offers adjustable voltages, spread spectrum EMI reduction, and robust protections. Easy to integrate with soft-start, sync, and power-good features, ensuring reliable performance across -40°C to +125°C. Perfect for power management in automotive systems, industrial automation, and electronic devices that demand precise, durable power solutions with minimal EMI and maximum efficiency.
Get Maxim MAX20029CATIAV today—built for precision, high efficiency, and durable automotive-grade power management solutions.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX20029CATIAV?
You can click on the BUY or RFQ button to purchase MAX20029CATIAV from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX20029CATIAV?
You can download the MAX20029CATIAV datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX20029CATIAV?
MAXIM INTEGRATED / ANALOG DEVICES
