MAXIM INTEGRATED / ANALOG DEVICES MAX17620EVKIT DC-DC Converter Module

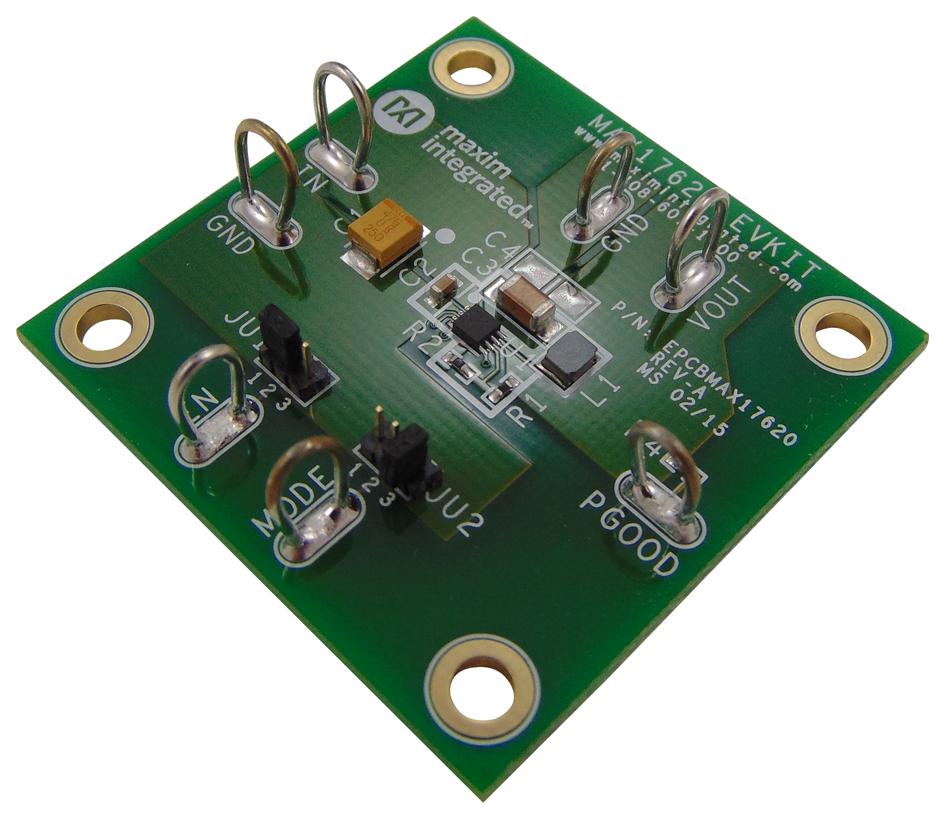

The MAX17620 Evaluation Kit is a fully assembled circuit demonstrating a high-frequency, miniature 600mA step-down DC-DC converter. It features adjustable output from 1.5V to 3.4V, preset at 1.8V, with efficiency up to 91%. The kit supports selectable forced-PWM and skip modes, external enable, open-drain PGOOD signal, thermal shutdown, and internal compensation. Suitable for compact power management applications, it offers laboratory testing with easy connections for input voltage 2.7V to 5.5V and load currents up to 600mA, making it ideal for engineers designing efficient power solutions.
MAXIM INTEGRATED / ANALOG DEVICES MAX17620EVKIT DC-DC Converter Module Specifications:
- Input Voltage Range: 2.7V to 5.5V
- Output Voltage: 1.8V (preset), adjustable from 1.5V to 3.4V
- Maximum Output Current: 600mA
- Switching Frequency: 4MHz fixed
- Peak Efficiency: 91%
- Mode Selection: forced-PWM or skip mode via jumper JU2
- Enable Control: external EN with jumper JU1
- Protection Features: thermal shutdown, brick wall current-limit
- Open-drain PGOOD Signal
- Internal Compensation
- Fully Assembled and Tested Circuit Board
- Thermal and load regulation supported
- Component Types: high-frequency switching regulator components
Buy the Buy MAXIM Integrated MAX17620 Part Number EVKIT Online
Purchase the MAX17620 evaluation kit online today and streamline your power design. This fully assembled circuit features a compact, high-frequency 600mA step-down regulator supporting adjustable output from 1.5V to 3.4V. With selectable modes and high efficiency up to 91%, it offers a reliable solution for portable and space-constrained applications. Easy to operate, with external enable, thermal shutdown, and open-drain PGOOD signal, it's ideal for engineers seeking quick testing and integration of modern power conversion technology.
Buy MAXIM Integrated MAX17620 EVKIT now and experience unmatched efficiency and flexible power management for miniature DC-DC applications.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX17620EVKIT?
You can click on the BUY or RFQ button to purchase MAX17620EVKIT from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX17620EVKIT?
You can download the MAX17620EVKIT datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX17620EVKIT?
MAXIM INTEGRATED / ANALOG DEVICES
