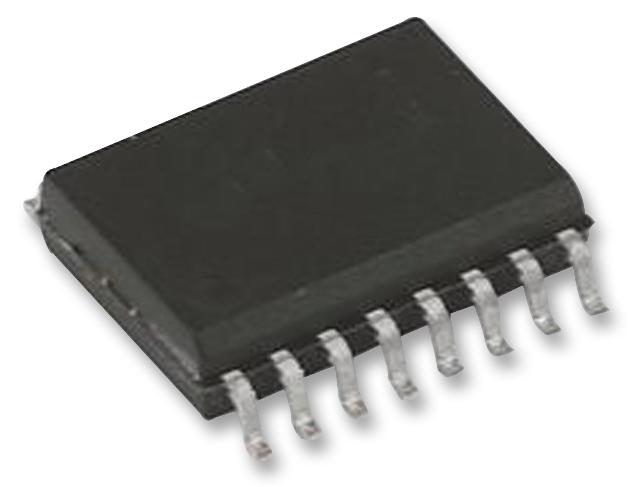

MAXIM INTEGRATED / ANALOG DEVICES MAX536BCWE Voltage DAC
The MAX536BCWE+ is a calibrated, quad 12-bit voltage-output DAC housed in a 16-pin Wide SO package. It features four independent 12-bit DAC channels with a double-buffered input, allowing for either independent or simultaneous updates via a 3-wire serial interface compatible with SPI/QSPI or MICROWIRE standards. Utilizing inverted R-2R ladder networks, digital inputs are converted into proportional analog outputs based on reference voltages. The device offers a wide supply voltage range, operates from 0°C to 70°C, and ensures full 12-bit performance with low error and high linearity, suitable for industrial automation, test equipment, and control applications.
MAXIM INTEGRATED / ANALOG DEVICES MAX536BCWE Voltage DAC Specifications:
- Resolution: 12 Bits
- DAC Channels: 4
- Input Interface: 3-wire serial (SPI/QSPI, MICROWIRE compatible)
- Data Register: Double-buffered input and DAC registers
- Reference Voltage Input: OV to 16.5V, -4.5V to -5.5V (negative)
- Output Buffer: Voltage output with 3dB bandwidth of 700kHz at 2Vp-p Vref
- Supply Voltage Range: +10.8V to +16.5V, -4.5V to -5.5V
- Operating Temperature: 0°C to 70°C
- Power-On Reset: Yes
- Total Unadjusted Error: ±2LSB at 25°C
- Linearity: ±1LSB
- Differential Nonlinearity: ±1LSB
- Power Supply Rejection Ratio: ±0.02LSB/V at 25°C
- Maximum Supply Current: 18mA at 25°C
- Slew Rate: 5V/µs
- Digital Inputs: TTL/CMOS compatible
- Output Buffer: Buffered voltage with low noise and distortion
- Package: 16 Wide SO
Buy the Maxim MAX536BCWE+ – Reliable 12-Bit Voltage DAC for Industrial Applications
Enhance your engineering projects with the MAX536BCWE+, a high-precision quad 12-bit voltage-output DAC. Featuring a simple serial interface, buffered outputs, and full performance specifications, this device ensures accurate and efficient signal processing. Its wide supply and operating temperature range make it suitable for industrial automation, microprocessor control, and test equipment. Trusted for low error, high linearity, and low noise, order online today to streamline your control system integrations with reliable digital-to-analog conversion.
Buy Maxim MAX536BCWE+ now and experience unmatched reliability and performance in your digital-to-analog conversion needs for industrial controls and test systems.
