MAXIM INTEGRATED / ANALOG DEVICES MAX17673EVKIT DC-DC Buck Converter Kit
This evaluation kit features the MAX17673 high-efficiency, synchronous buck converter capable of handling up to 60V and 1.5A. It provides three configurable DC-DC outputs from a single high-voltage input, with a wide input range of 7V to 60V. The kit is pre-programmed for a 5V/1.5A output for the high-voltage (HV) buck converter, along with 3.3V/1A and 1.8V/1A outputs for the low-voltage (LV) buck converters. It operates at switching frequencies of 400kHz for the HV converter and 2MHz for the LV converters, achieving efficiencies of 93% and 94%, respectively. Features include enable and UVLO inputs with resistor-programmable UVLO thresholds, selectable PWM and PFM modes, as well as overcurrent and overtemperature protections.
MAXIM INTEGRATED / ANALOG DEVICES MAX17673EVKIT DC-DC Buck Converter Kit Specifications:
- Input Voltage Range: 7V to 60V
- High Voltage Buck: 60V, 1.5A
- Outputs: 5V/1.5A, 3.3V/1A, 1.8V/1A
- Switching Frequencies: 400kHz (HV), 2MHz (LV)
- Efficiency: up to 93% for HV, up to 94% for LV
- Protections: Overcurrent, overtemperature
- Control Modes: PWM and PFM selectable
- Enable and UVLO Inputs with resistor-programmable thresholds
- Pre-configured for multiple output voltages
- PCB layout: Proven design, surface-mount components

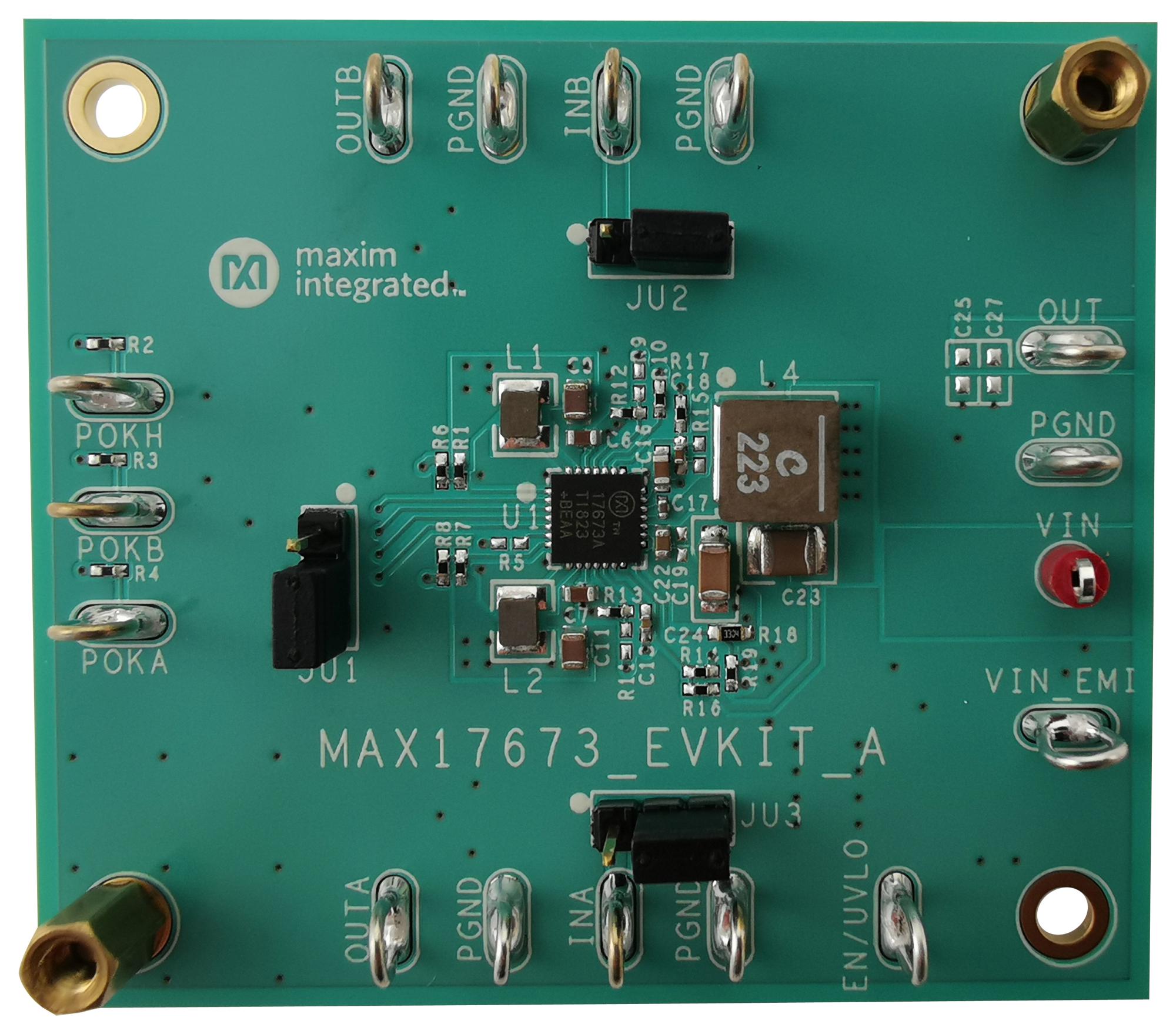

Buy the Maxim Series MAX17673 Evaluation Kit: 7V-60V, 3 Outputs
Purchase the Maxim series MAX17673 evaluation kit online today and experience high-efficiency power conversion with three configurable outputs. Designed for 7V to 60V input, this fully assembled kit offers programmable UVLO thresholds, PWM and PFM modes, and protections against overcurrent and temperature. Ideal for industrial, automotive, or power supply applications, it ensures precise voltage regulation, robust performance, and easy integration into advanced power systems. Order now to improve your project’s reliability and efficiency with a proven design.
Get Maxim MAX17673EVKIT today—built for high efficiency, versatile operation, and reliable power management from 7V to 60V input.
