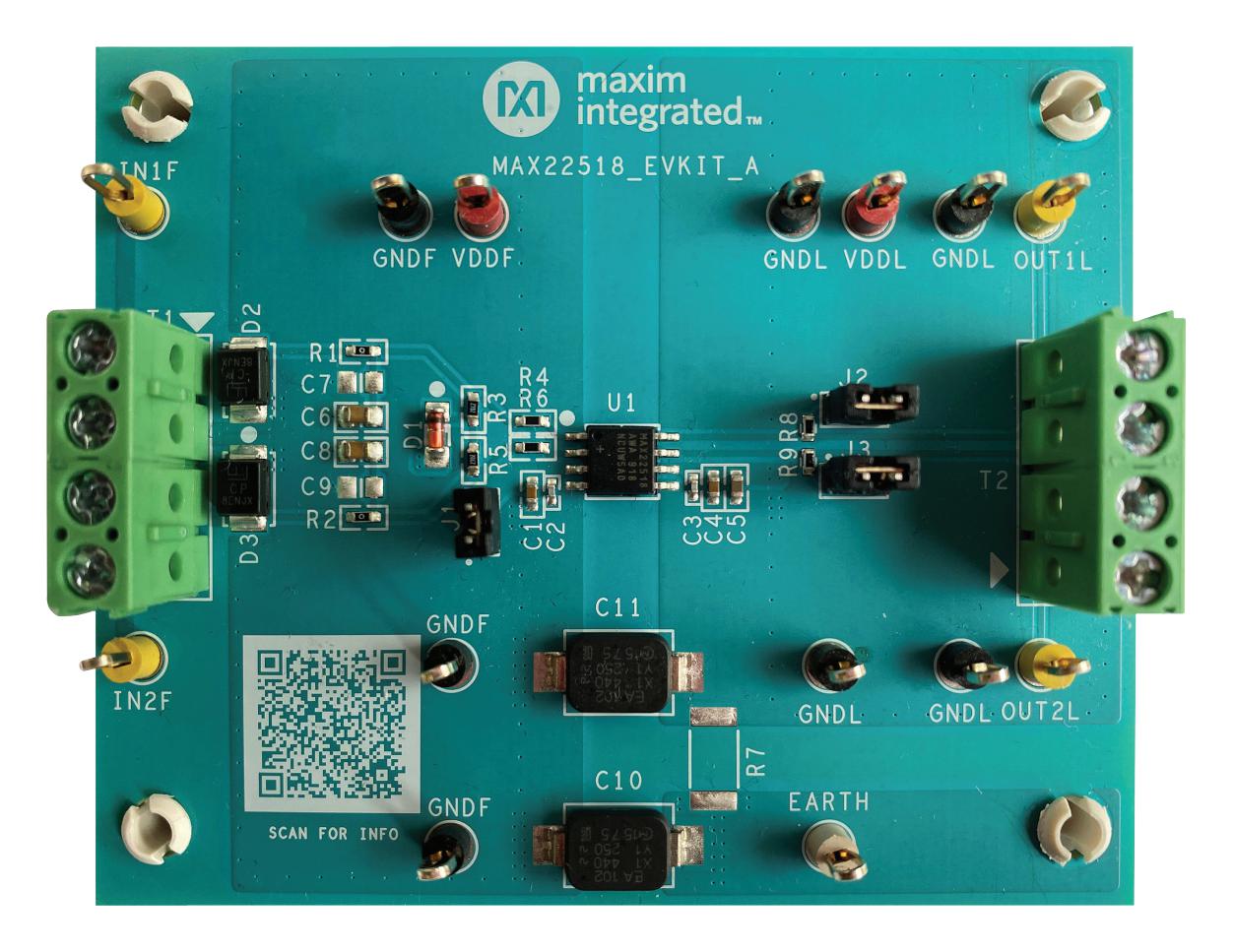

MAXIM INTEGRATED / ANALOG DEVICES MAX22518EVKIT Digital Isolator Kit
The MAX22518 evaluation kit supports the self-powered, dual-channel digital isolators of the MAX22517-MAX22519 family, featuring surge protection, open-drain or push-pull outputs, and an isolated field-side supply. It includes external components for surge testing up to 1kV differential and 2kV common mode, with easy connection via terminal blocks and test points. The kit is fully assembled with the MAX22518AWA+ device, capable of operating from a 3V to 5.5V supply, and supports evaluating electrical parameters, transient immunity, and radiated emission standards. Designed for reliable testing of high-voltage isolation in industrial applications.
MAXIM INTEGRATED / ANALOG DEVICES MAX22518EVKIT Digital Isolator Kit Specifications:
- Power Supply Range: 3V to 5.5V
- Isolation Voltage: Up to 3.5kVRms for 60s
- Surge Tolerance: Up to +1kV differential, +2kV common mode (waveform 1.2/50us)
- Channel Configuration: Dual with unidirectional channels
- Outputs: Open-drain or push-pull (MAX22518/A, MAX22519 modules)
- Input-Output Capacitance Stitching: Approximately 70pF
- Decoupling Capacitors: 1000pF, 0.1pF, and 1pF ceramic types placed near device pins
- Environmental Temperature Range: -40°C to +125°C
- PCB Layout: Proven design for minimal EMI and radiated emission standards
- External Surge Testing: Supports IEC 61000-4-x surge immunity standards up to 1kV and 2kV with resistors and TVS diodes
- Connector and Test Points: Terminal blocks and test points for easy testing and external equipment connection
- Application: High-voltage industrial isolation, surge testing, transient immunity assessment, and signal integrity verification
Buy the Maxim Series MAX22518 Digital Isolator: MAX22518EVKIT
Experience the industry-proven design of the Maxim MAX22518 evaluation kit, engineered for high-voltage isolation testing, surge immunity, and EMI minimizing PCB layout. Fully assembled with the MAX22518AWA+ device, it allows comprehensive evaluation of dual-channel digital isolators suitable for industrial applications. With easy connection via terminal blocks and test points, the kit supports surge testing up to 1kV differential, 2kV common mode, and transient immunity checks, making it an essential tool for engineers needing reliable high-voltage isolation solutions.
Buy Maxim MAX22518EVKIT now and evaluate high-voltage digital isolator performance with surge protection, reliable testing features, and industry-standard compliance.
