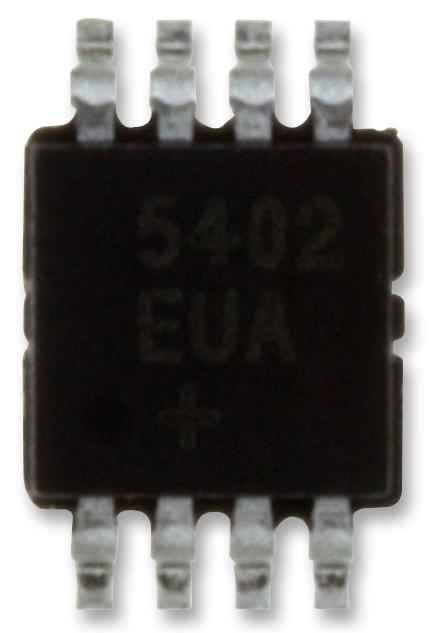

MAXIM INTEGRATED / ANALOG DEVICES MAX1792EUA33 Low Dropout Regulator
The MAX1792 is a low-dropout, low-quiescent-current linear regulator designed for battery-powered applications, providing up to 500mA of output current. It features preset output voltages including 1.5V, 1.8V, 2.5V, 3.3V, and 5.0V, with adjustable options. The device offers low dropout voltage, thermal shutdown, current limiting, and a reset output for system reliability. Its small 8-pin Power-uMAX package with an exposed pad ensures efficient thermal management, making it ideal for portable electronics such as PDAs, cell phones, and notebooks.
MAXIM INTEGRATED / ANALOG DEVICES MAX1792EUA33 Low Dropout Regulator Specifications:
- Input Voltage Range: 2.5V to 5.5V
- Output Voltage (Preset): 1.5V, 1.8V, 2.5V, 3.3V, 5.0V or adjustable from 1.25V to 5.0V
- Maximum Output Current: 500mA
- Dropout Voltage: 130mV at 500mA
- Ground Pin Current: 80uA (typical at load)
- Shutdown Current: 0.1pA
- Thermal Shutdown: 170°C with 20°C hysteresis
- Power Dissipation: 1.3W max, uses exposed pad for cooling
- Operating Temperature Range: -40°C to +85°C
- Package: 8-pin Power-uMAX with exposed pad
Buy the Maxim Series MAX1792 Low-Dropout Linear Regulator: MAX1792EUA33
Get the Maxim Series MAX1792EUA33 low-dropout linear regulator now available for online purchase. This compact, high-accuracy regulator offers preset voltages of 1.5V, 1.8V, 2.5V, 3.3V, and 5.0V, with adjustable options from 1.25V to 5V. It delivers up to 500mA of load current, ideal for portable devices like smartphones, PDAs, and notebooks. Features include low dropout voltage, thermal shutdown, current limit, and a reset function, all housed in a small 8-pin Power-uMAX package for efficient thermal management. Order today and power your portable electronics reliably.
Order your Maxim Series MAX1792EUA33 low-dropout linear regulator today and ensure reliable power delivery for your portable electronics and low-voltage systems.
